MTDM普及型系列

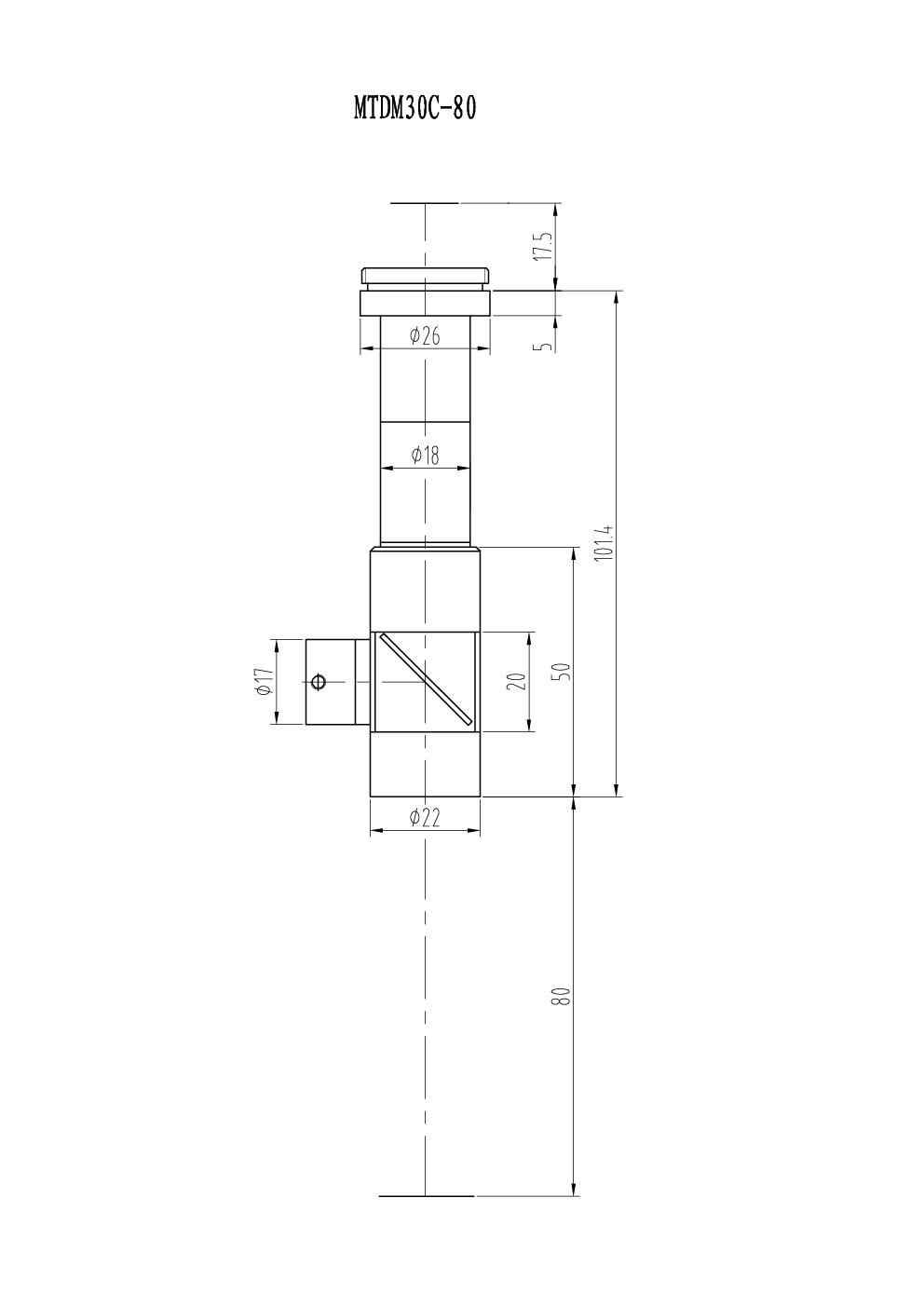

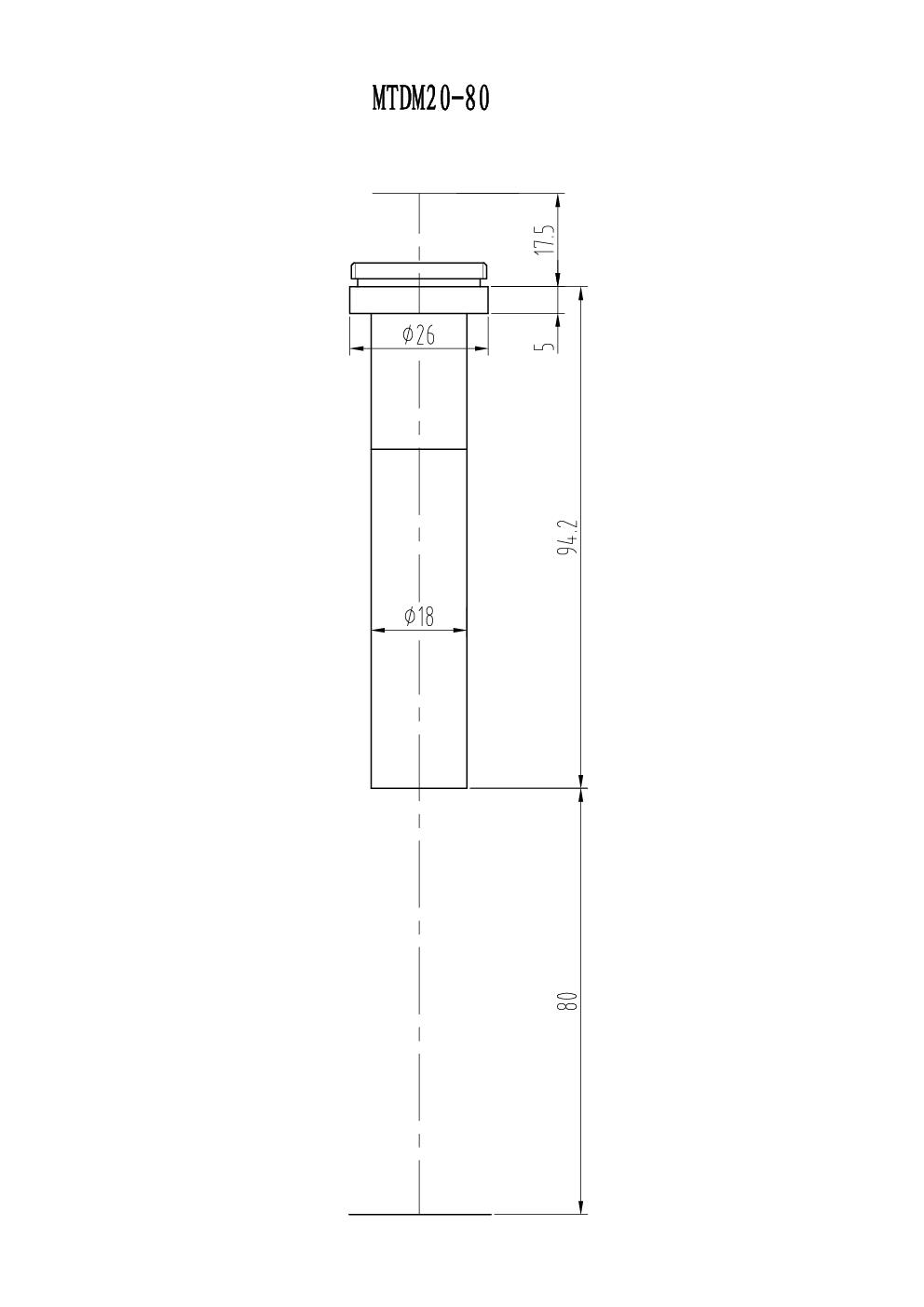

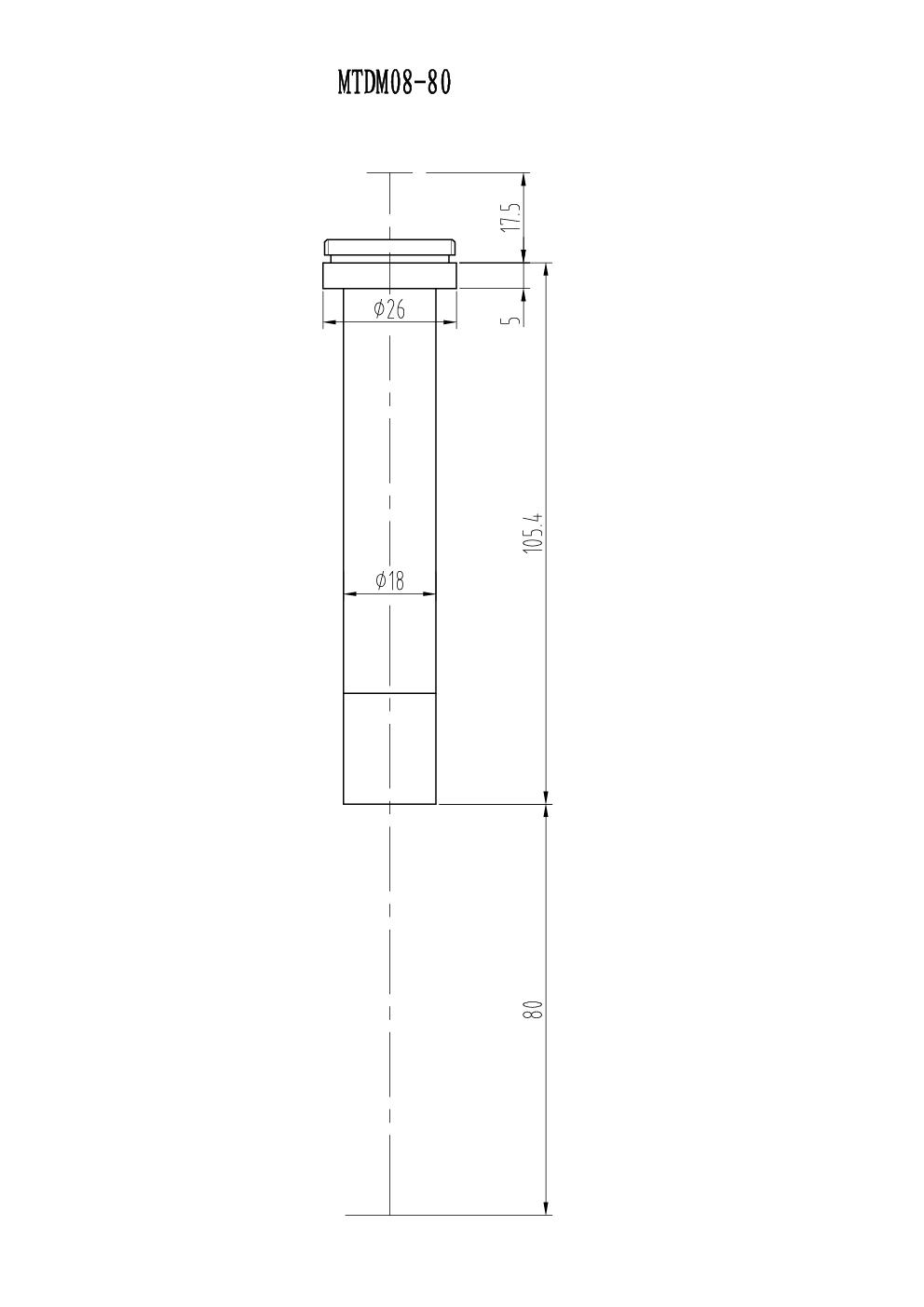

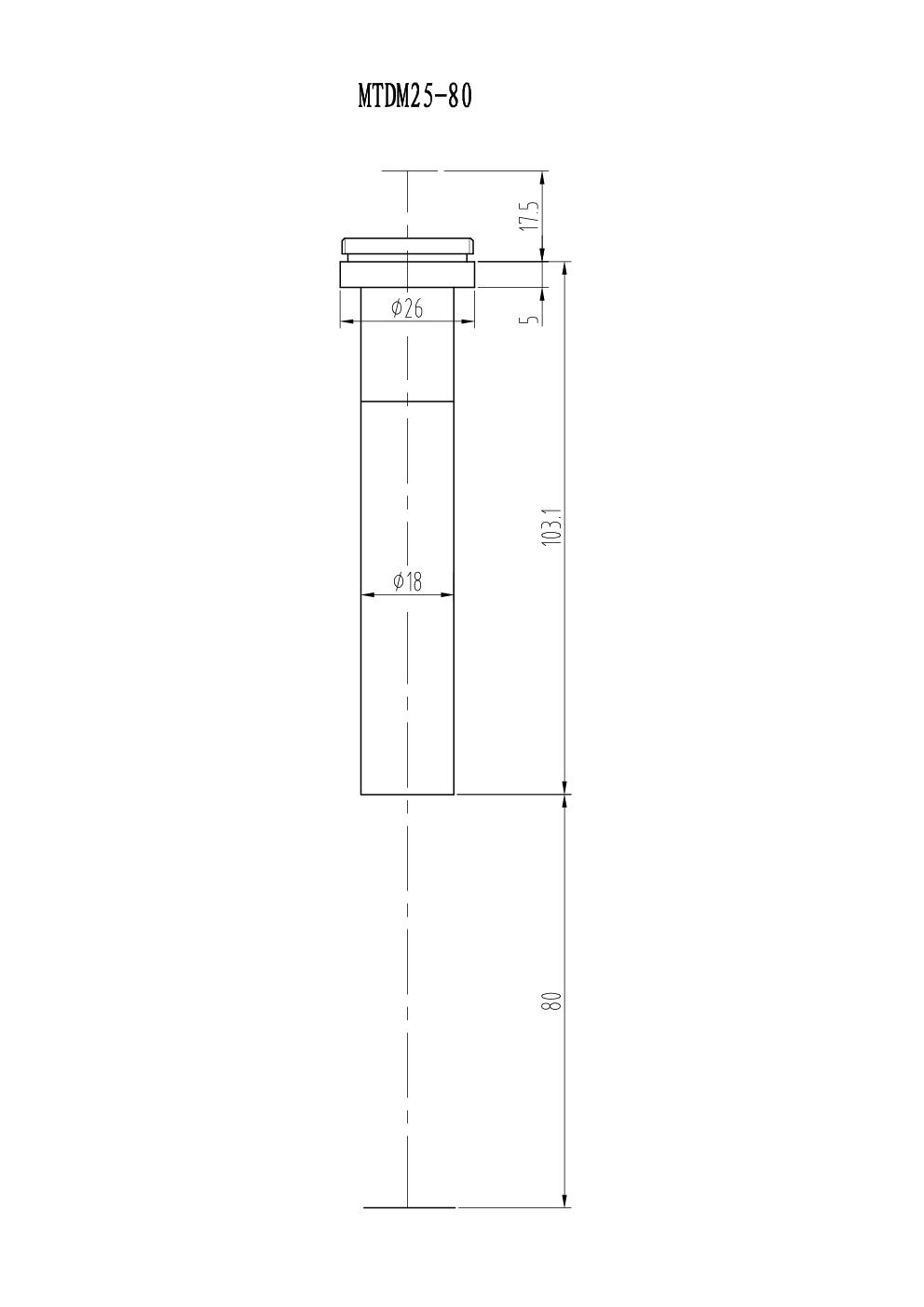

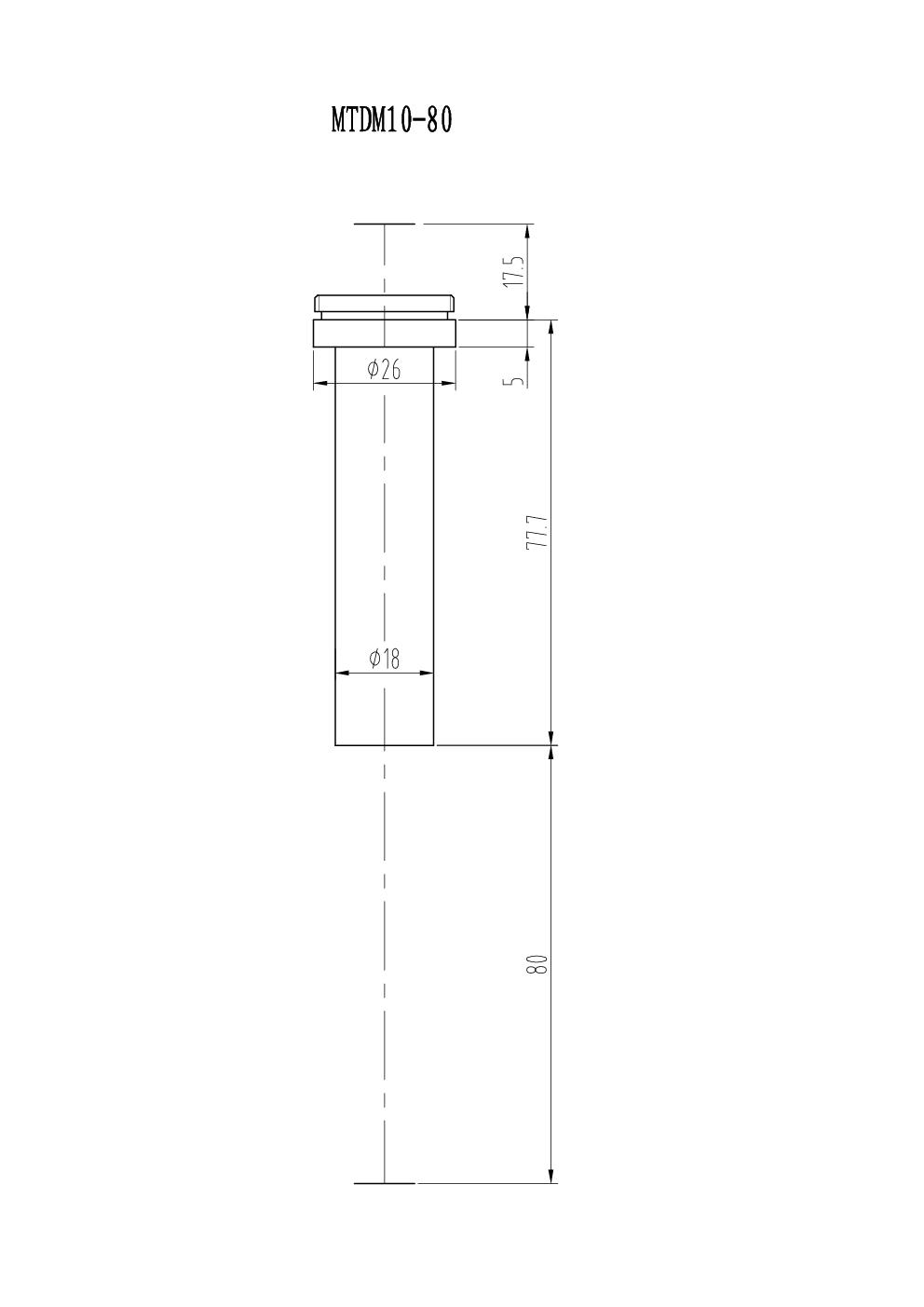

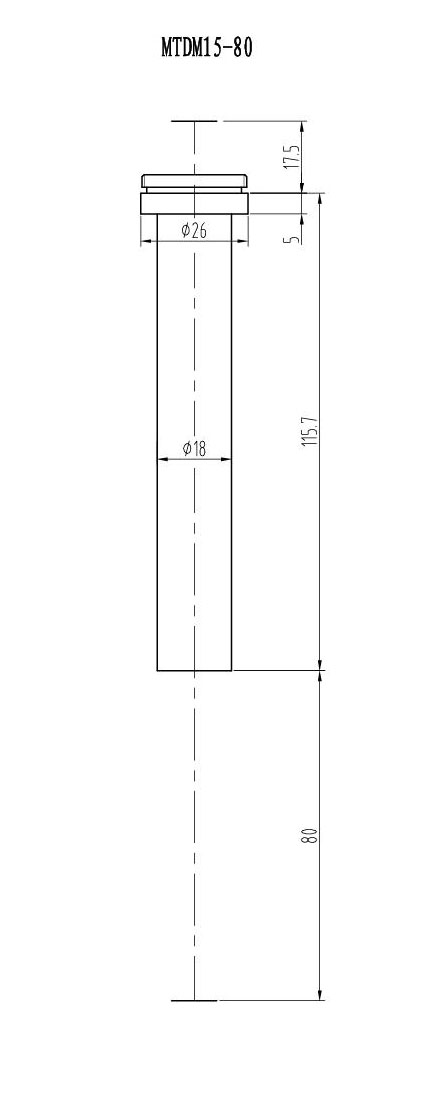

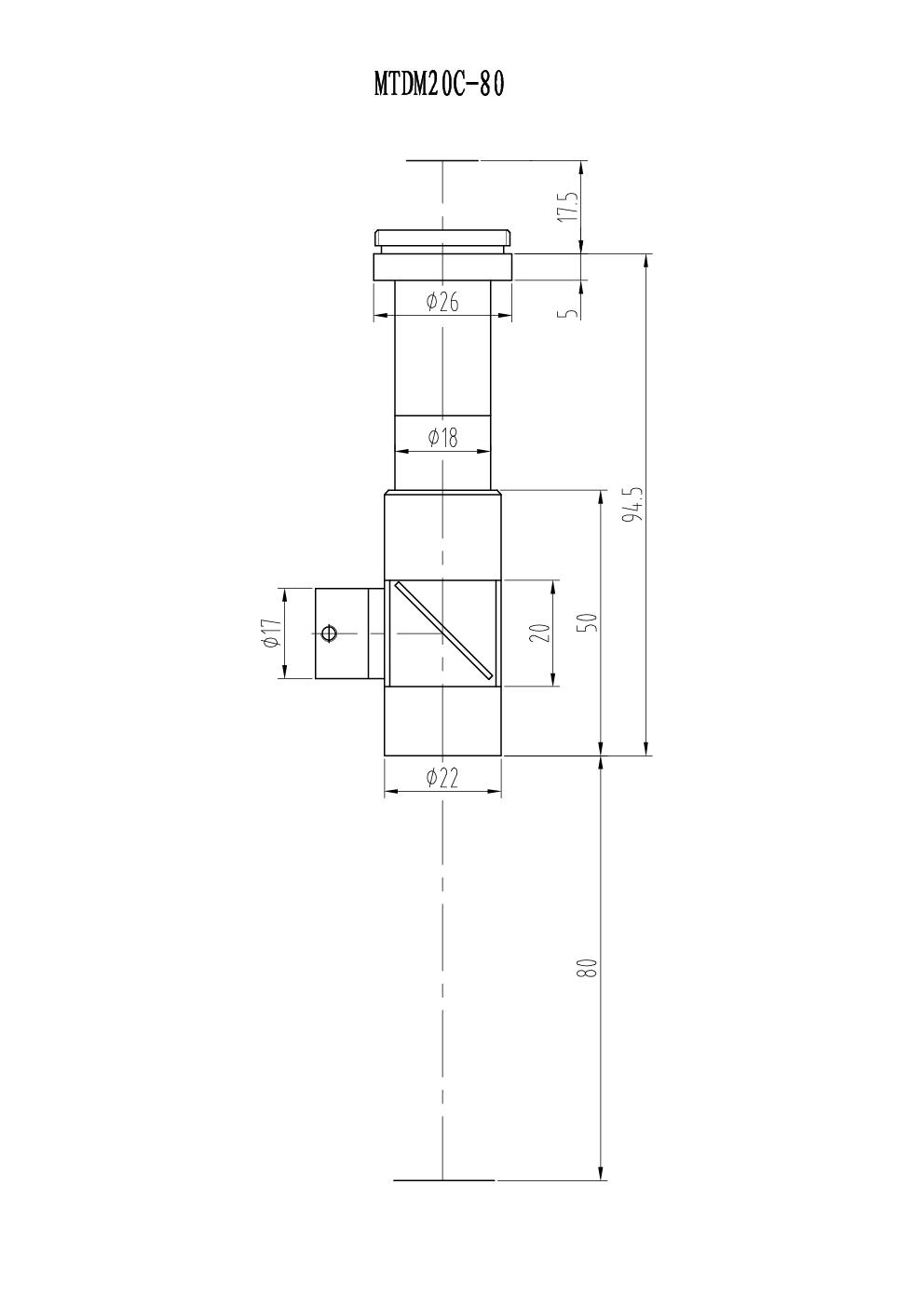

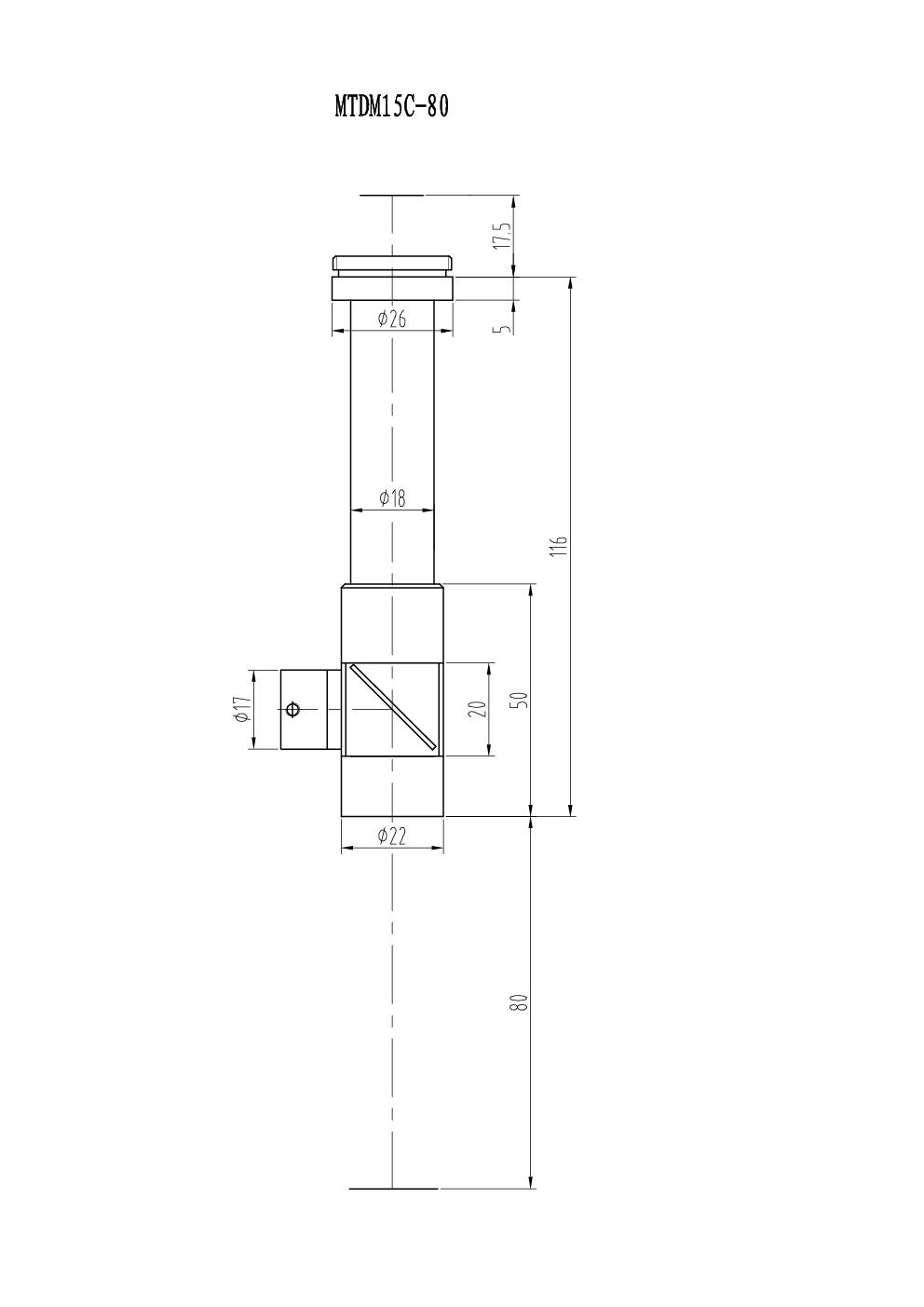

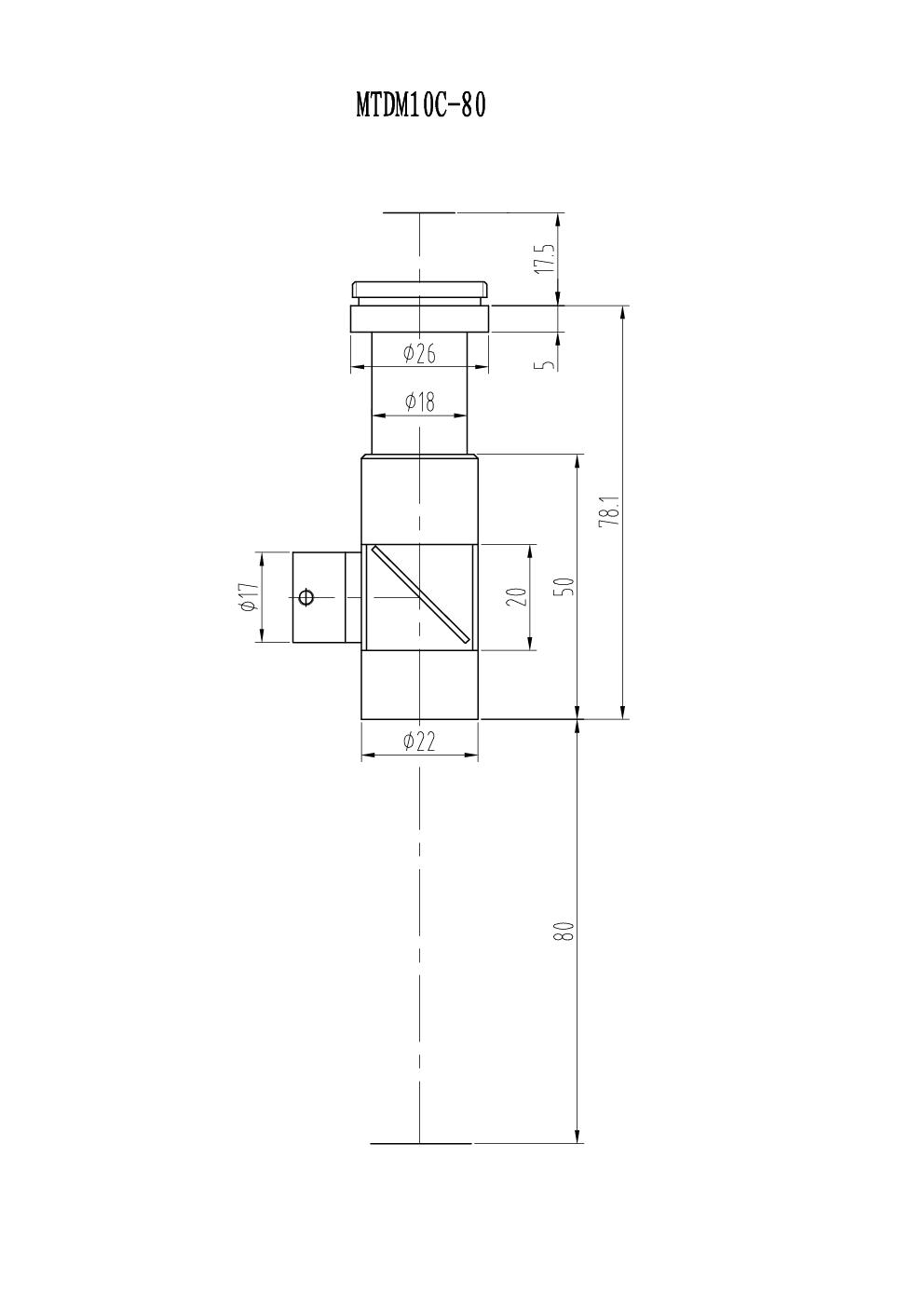

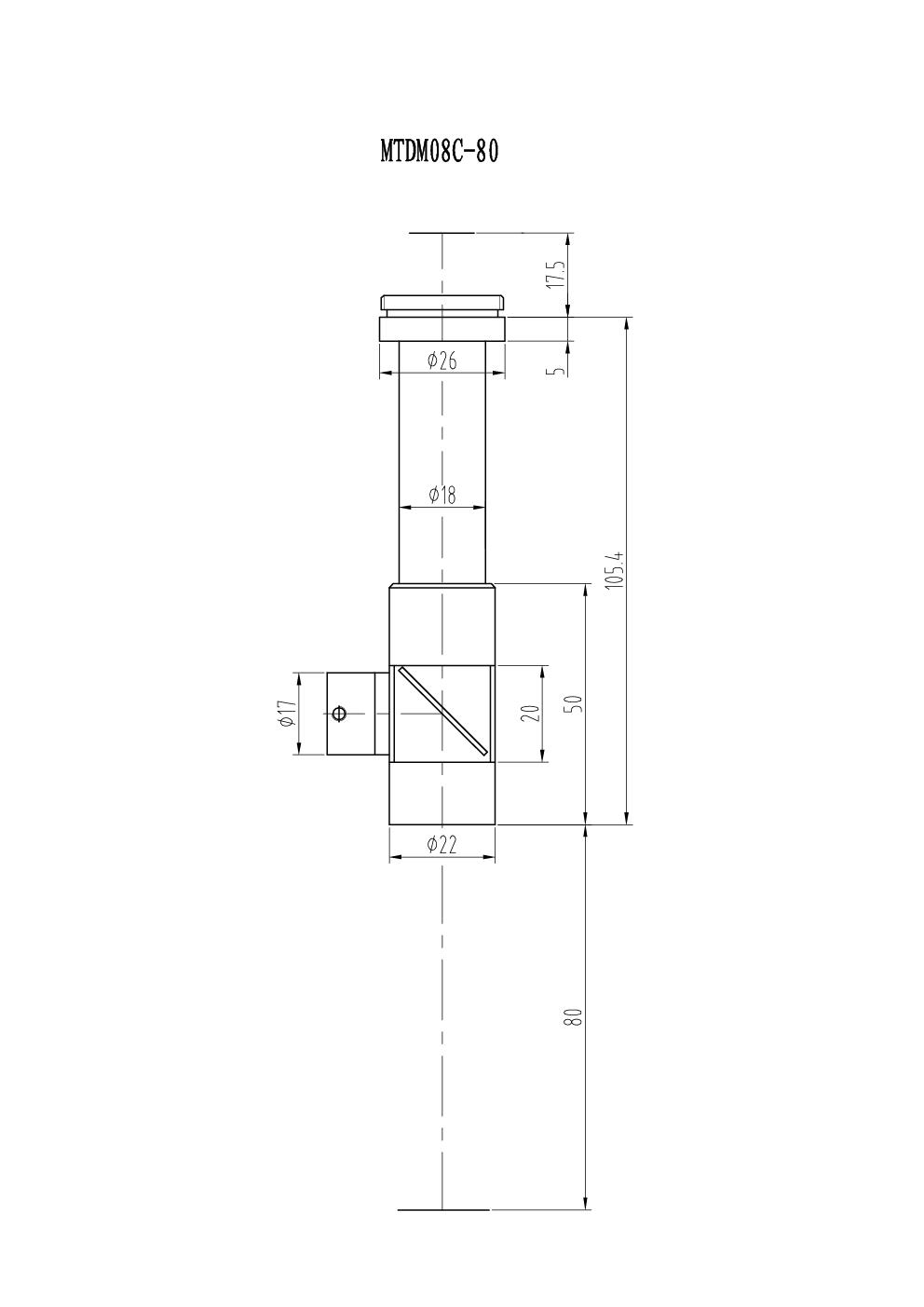

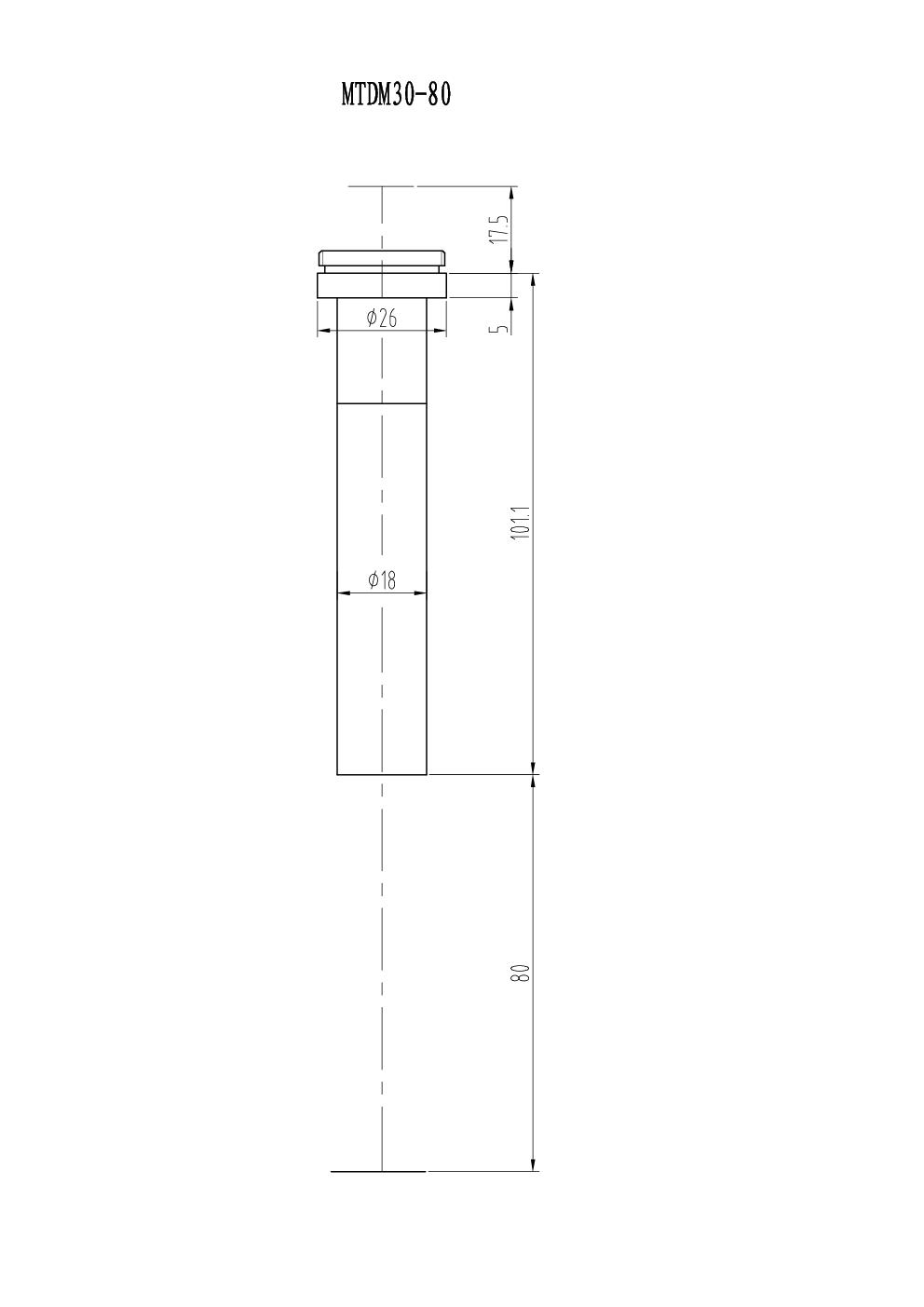

1. MTDM系列單筒視頻顯微物鏡型號規格匯總（工作距離為80mm）：
|
型號 |
物鏡倍數 |
工作距離 (mm) |
總放大倍數 |
視場(mm) |
NA |
景深 |
分辨率(μm) |
失真 |
|
|
1/3"、9" |
1/3"、17" |
||||||||
|
0.6X |
80 |
22.9X |
43.2X |
8X6 |
0.04 |
1.67 |
8.4 |
0.08% |
|
|
0.6X |
80 |
22.9X |
43.2X |
8X6 |
0.04 |
1.67 |
8.4 |
0.08% |
|
|
0.8X |
80 |
30.5X |
57.6X |
6X4.5 |
0.04 |
1.25 |
8.4 |
0.1% |
|
|
0.8X |
80 |
30.5X |
57.6X |
6X4.5 |
0.04 |
1.25 |
8.4 |
0.1% |
|
|
1.0X |
80 |
38.1X |
72.0X |
4.8X3.6 |
0.05 |
0.8 |
6.7 |
0.3% |
|
|
1.0X |
80 |
38.1X |
72.0X |
4.8X3.6 |
0.05 |
0.8 |
6.7 |
0.3% |
|
|
1.5X |
80 |
57.2X |
108.0X |
3.2X2.4 |
0.05 |
0.8 |
6.7 |
0.3% |
|
|
1.5X |
80 |
57.2X |
108.0X |
3.2X2.4 |
0.05 |
0.8 |
6.7 |
0.3% |
|
|
2.0X |
80 |
76.2X |
143.9X |
2.4X1.8 |
0.05 |
0.4 |
6.7 |
0.2% |
|
|
2.0X |
80 |
76.2X |
143.9X |
2.4X1.8 |
0.05 |
0.4 |
6.7 |
0.2% |
|
|
2.5X |
80 |
95.3X |
179.9X |
1.9X1.4 |
0.05 |
0.32 |
6.7 |
0.2% |
|
|
2.5X |
80 |
95.3X |
179.9X |
1.9X1.4 |
0.05 |
0.32 |
6.7 |
0.2% |
|
|
3.0X |
80 |
114.3X |
215.9X |
1.6X1.2 |
0.055 |
0.24 |
6.1 |
0.3% |
|
|
3.0X |
80 |
114.3X |
215.9X |
1.6X1.2 |
0.055 |
0.24 |
6.1 |
0.3% |
|
|
4.0X |
80 |
152.4X |
287.9X |
1.2X0.9 |
0.06 |
0.17 |
5.6 |
0.4% |
|
|
4.0X |
80 |
152.4X |
287.9X |
1.2X0.9 |
0.06 |
0.17 |
5.6 |
0.4% |
|

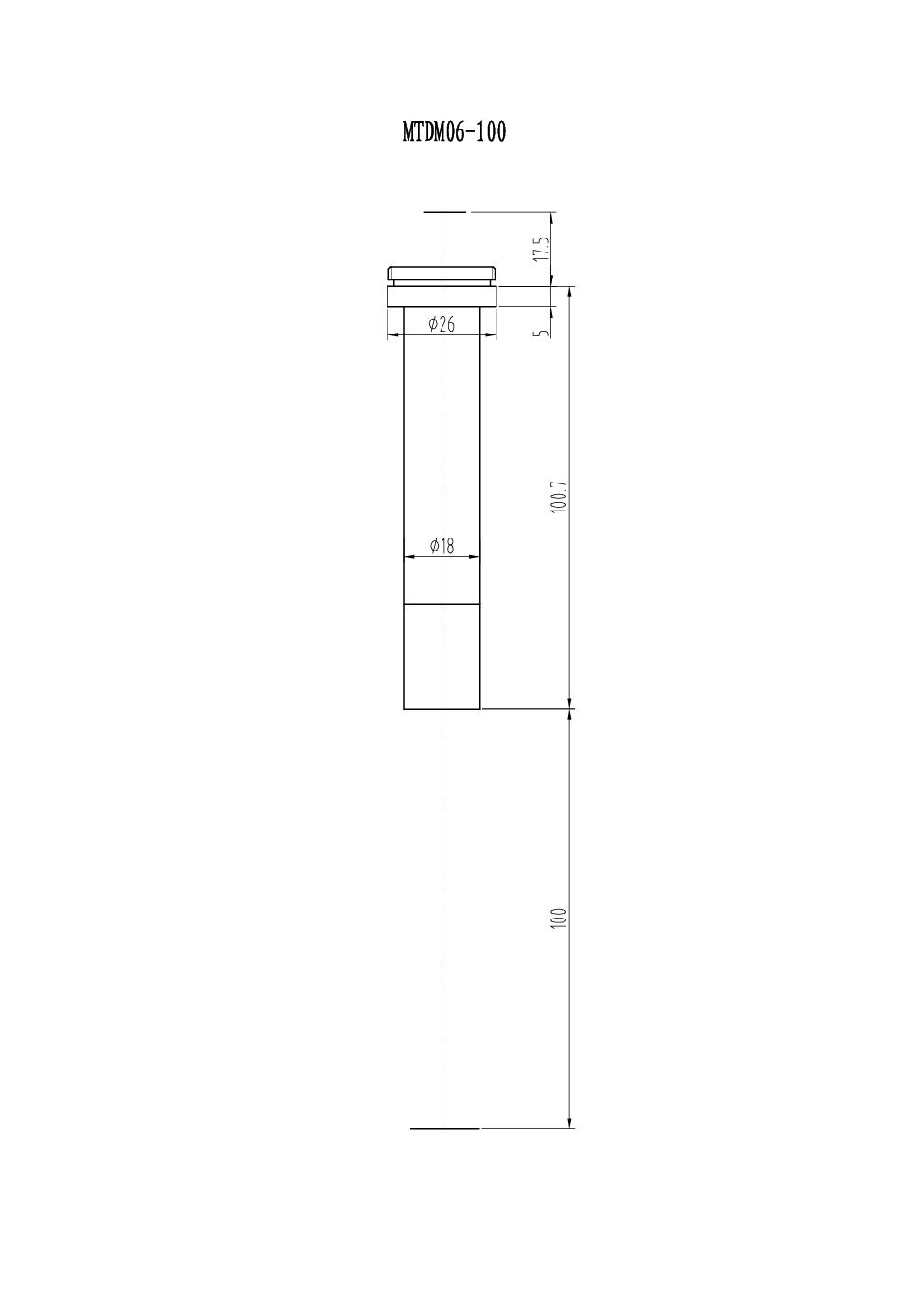

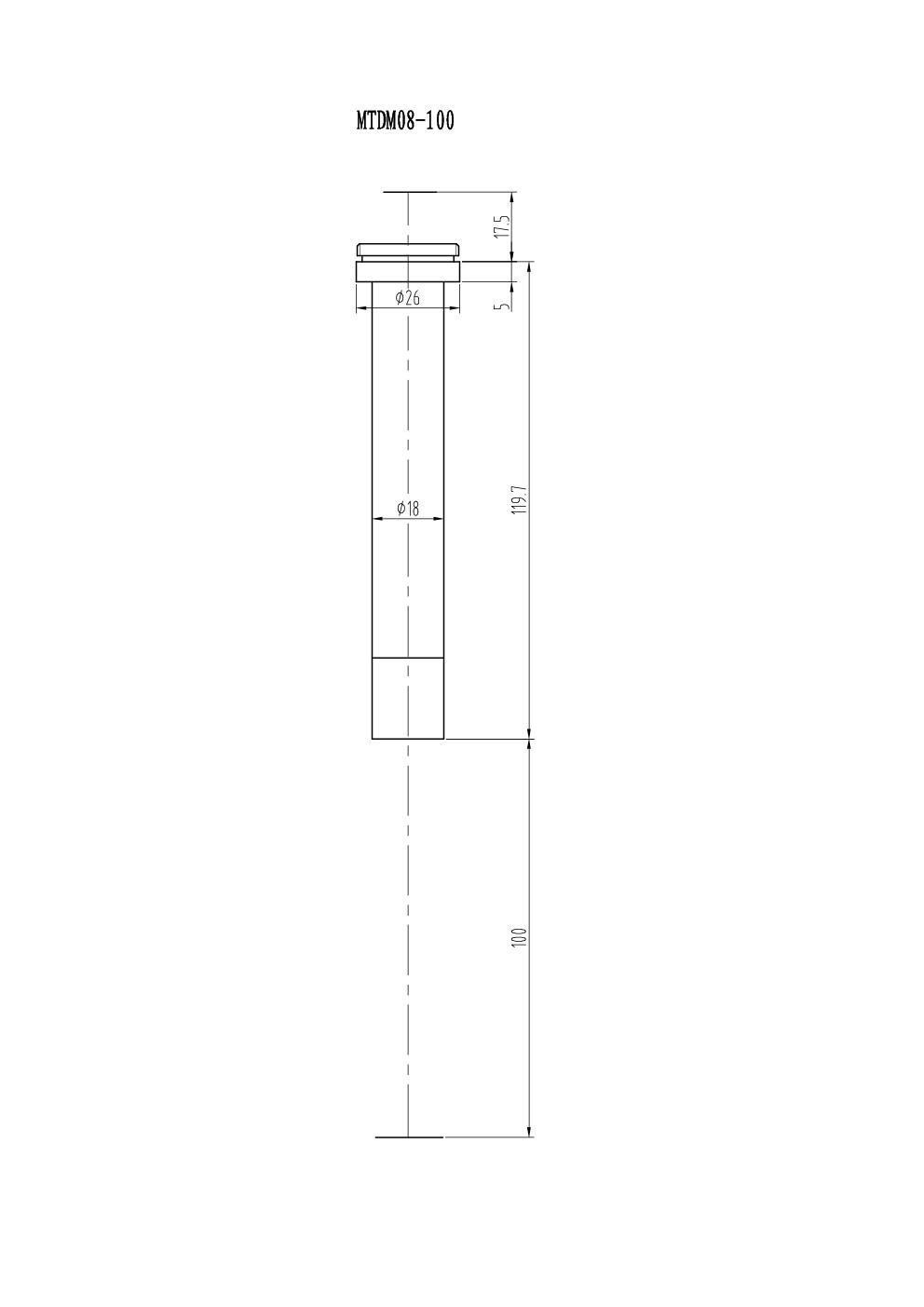

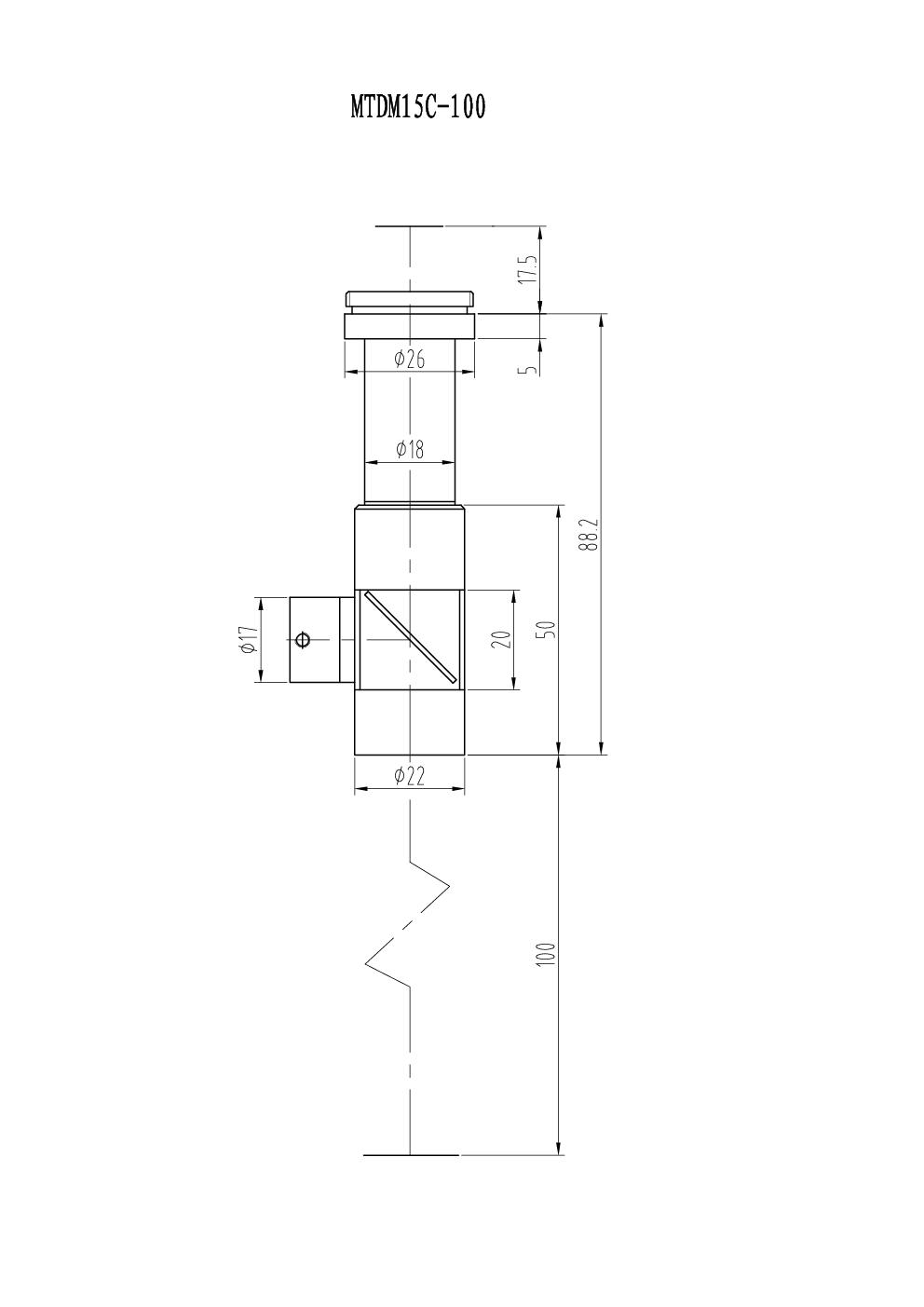

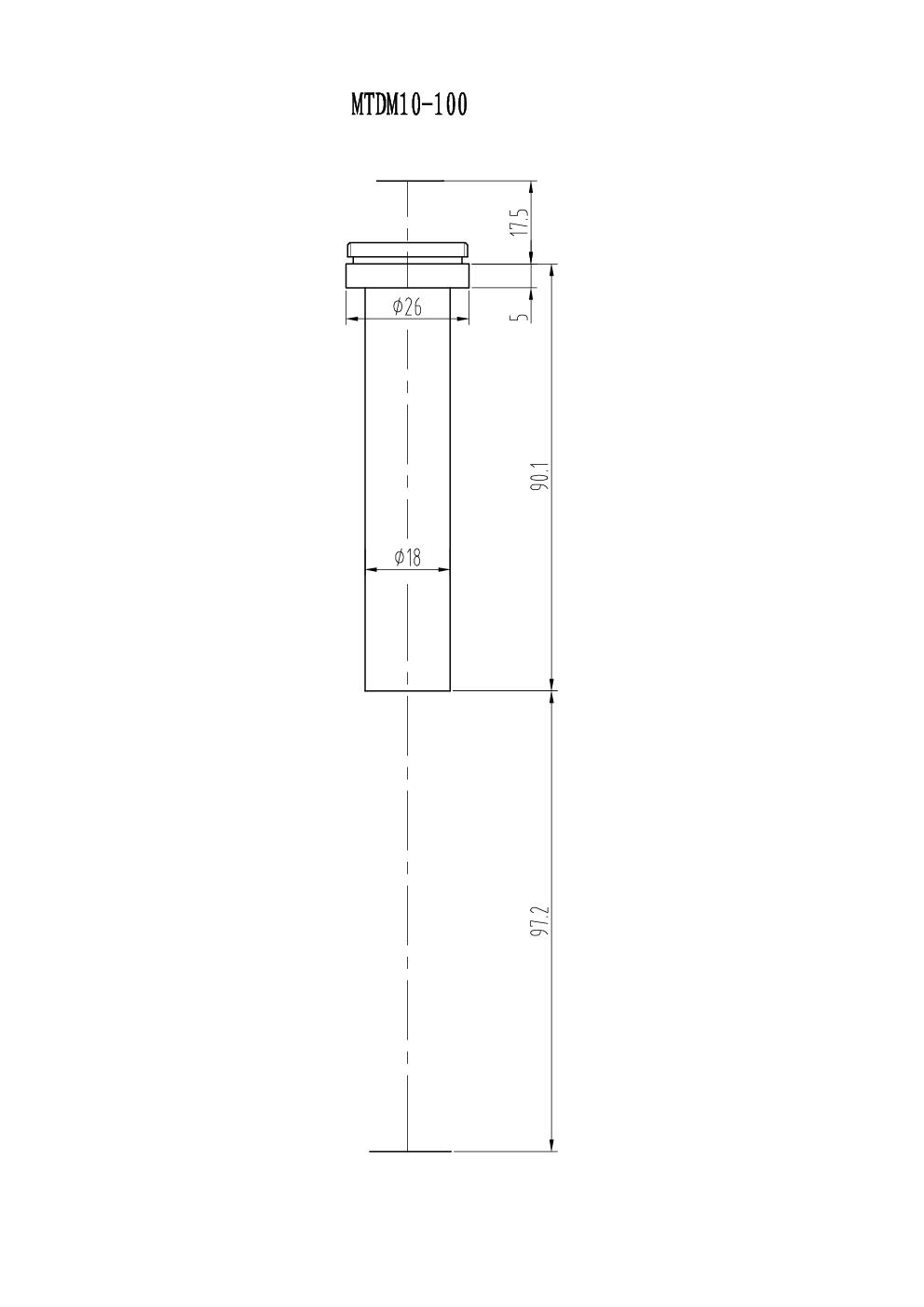

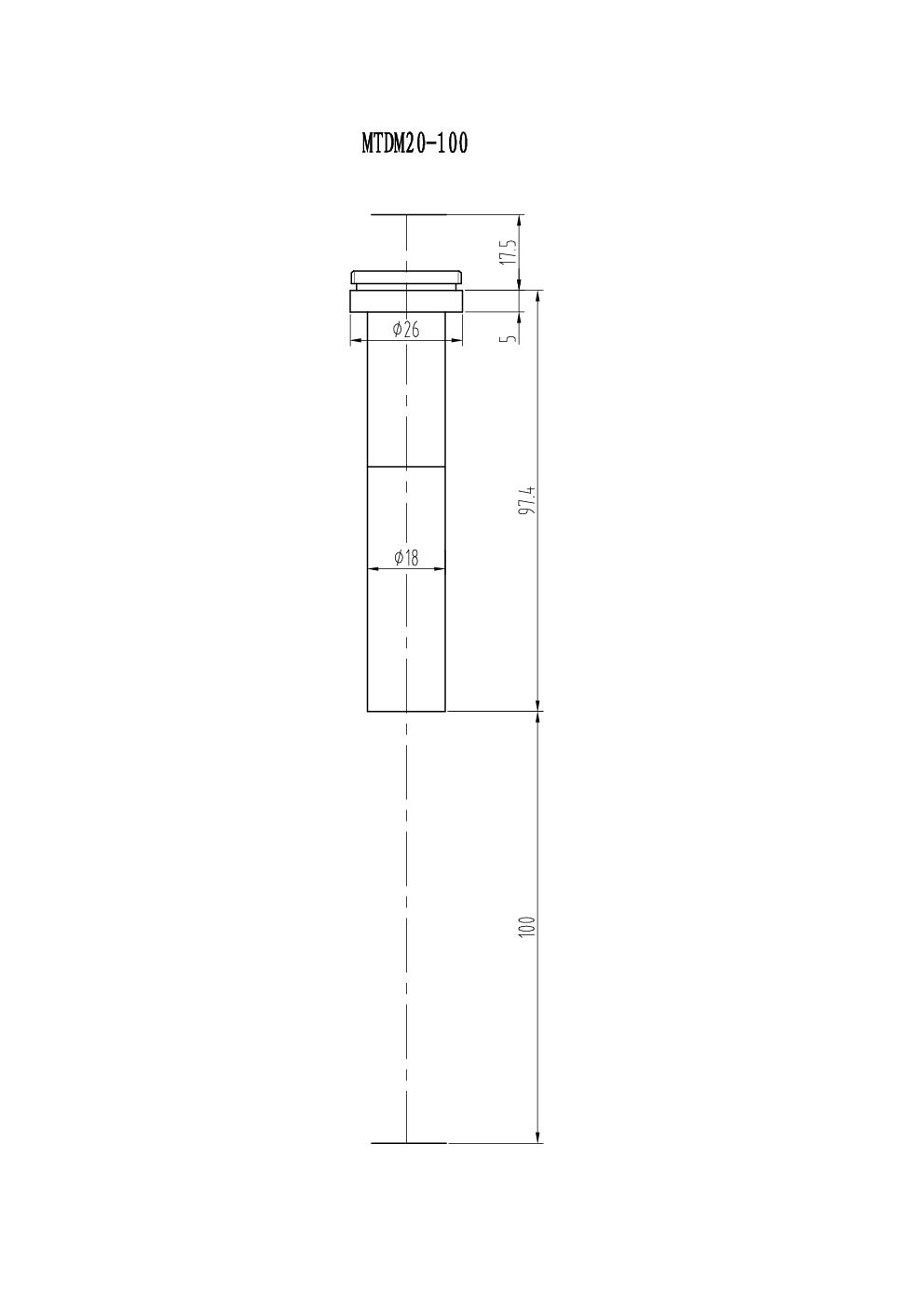

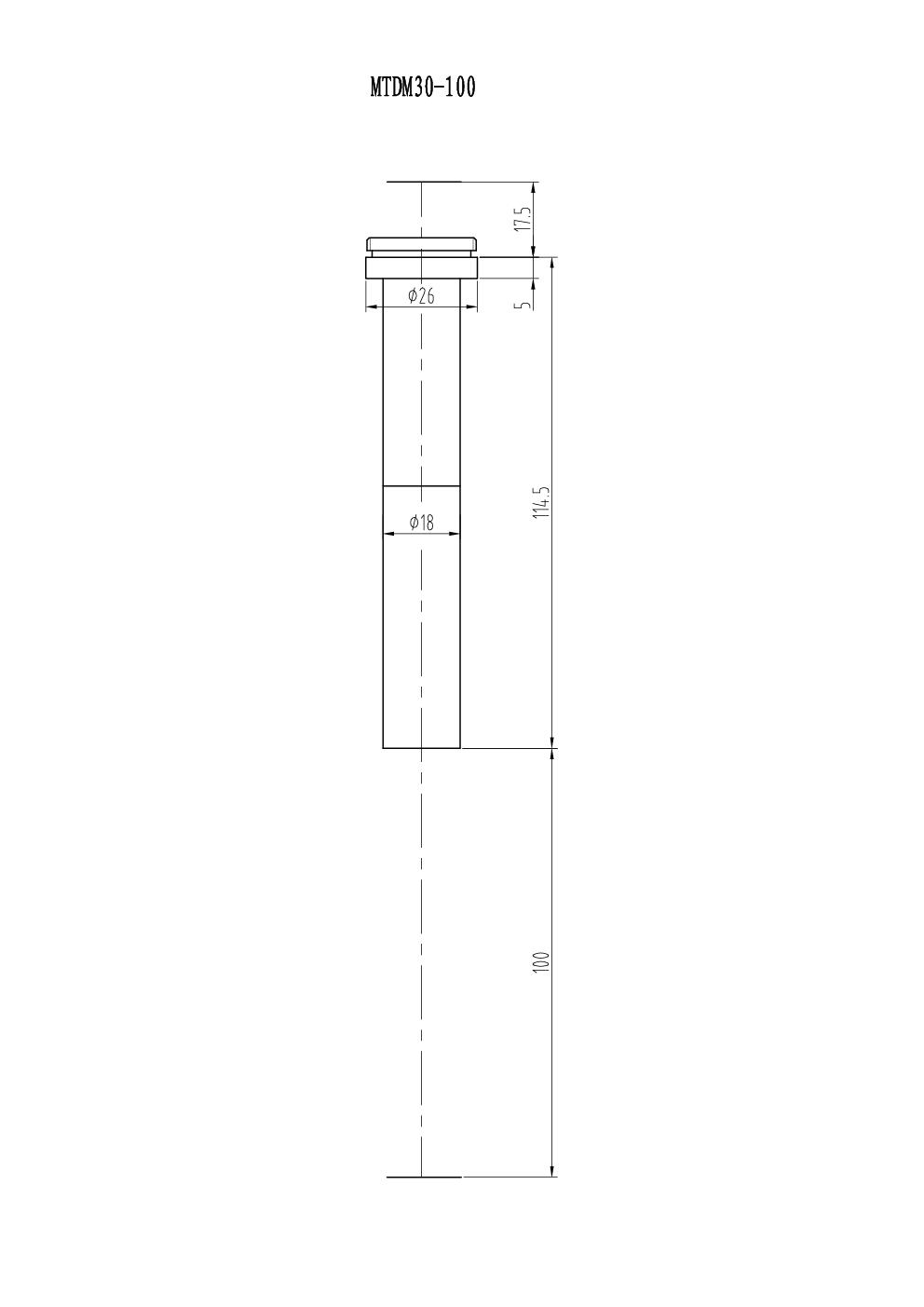

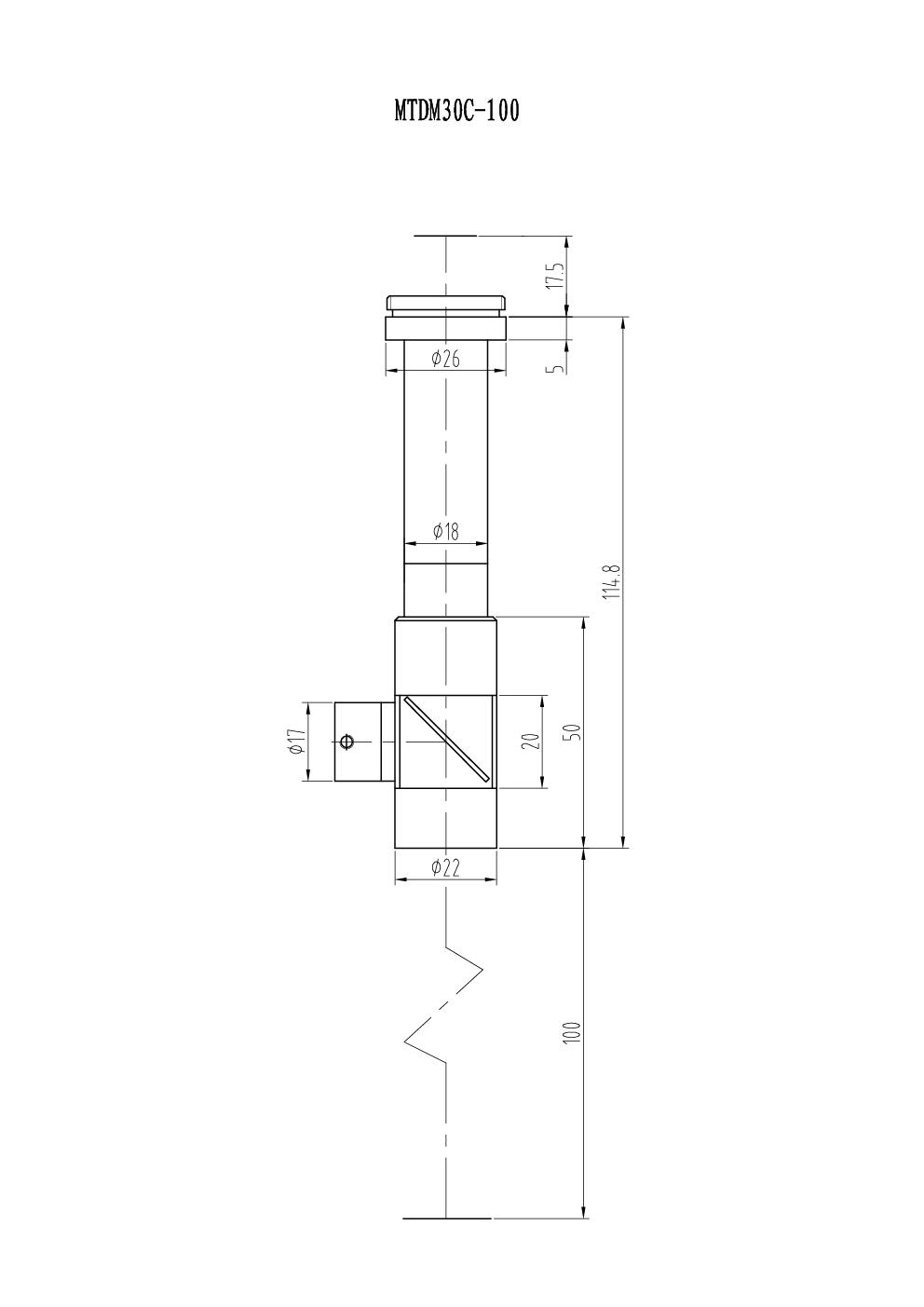

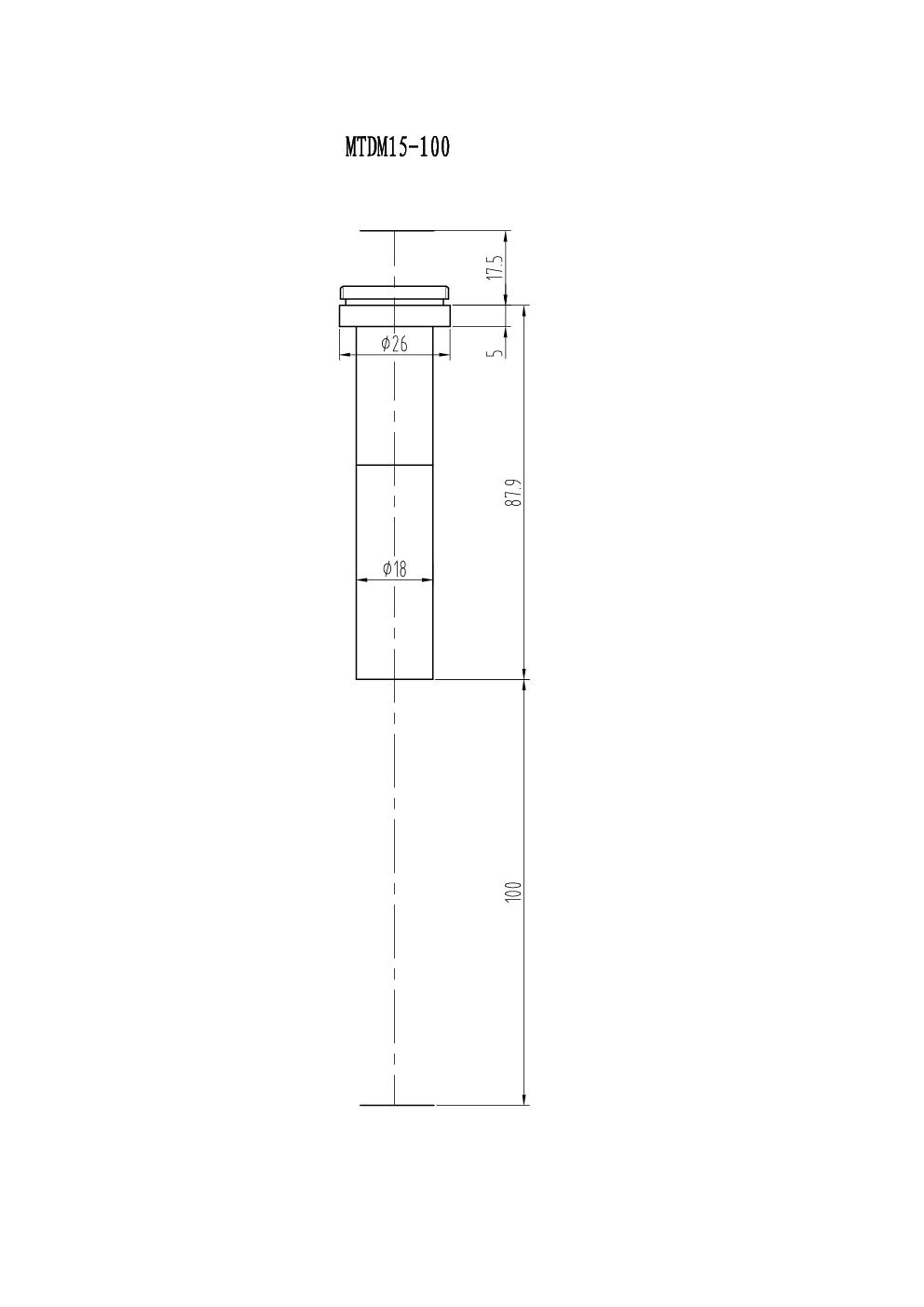

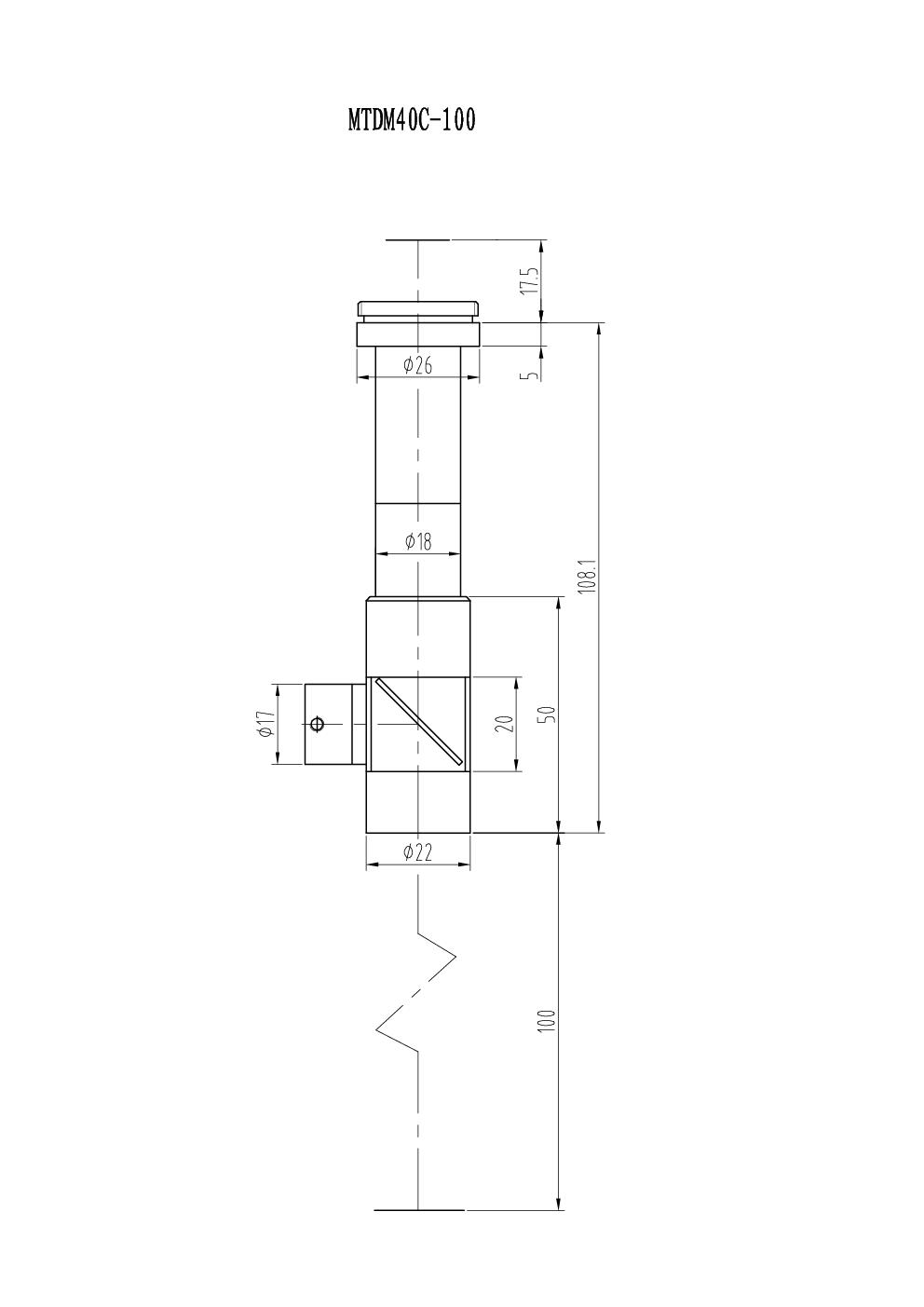

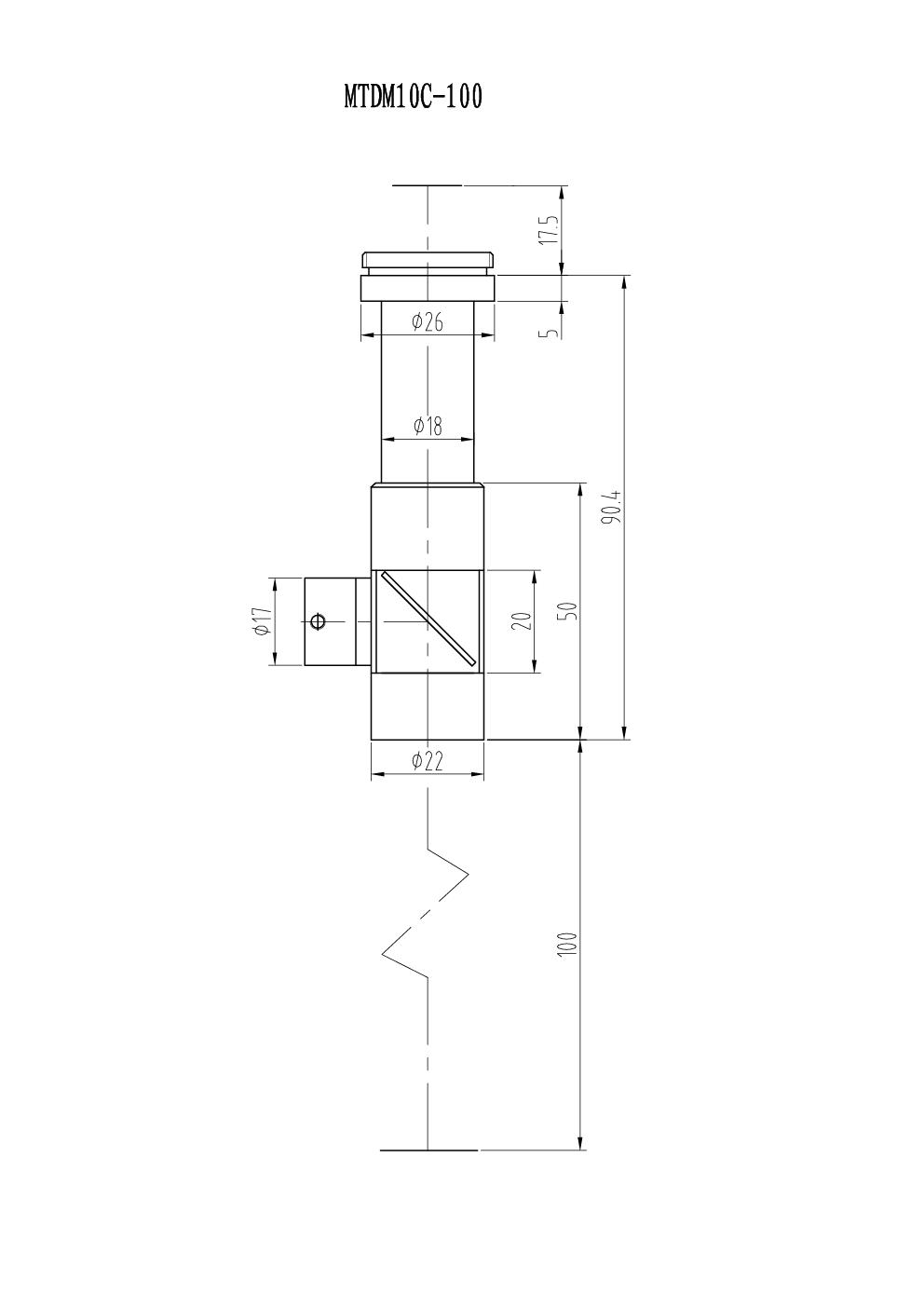

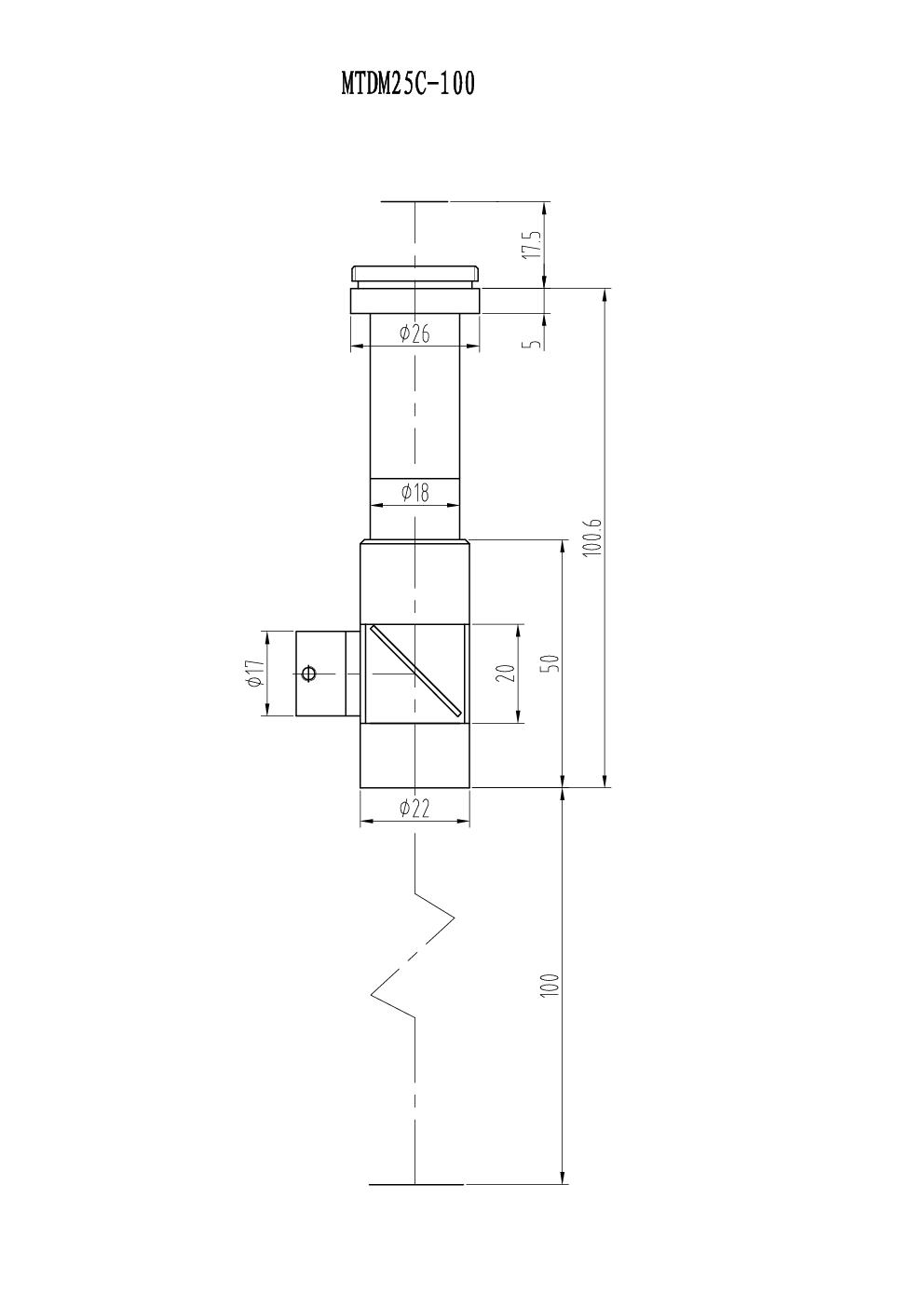

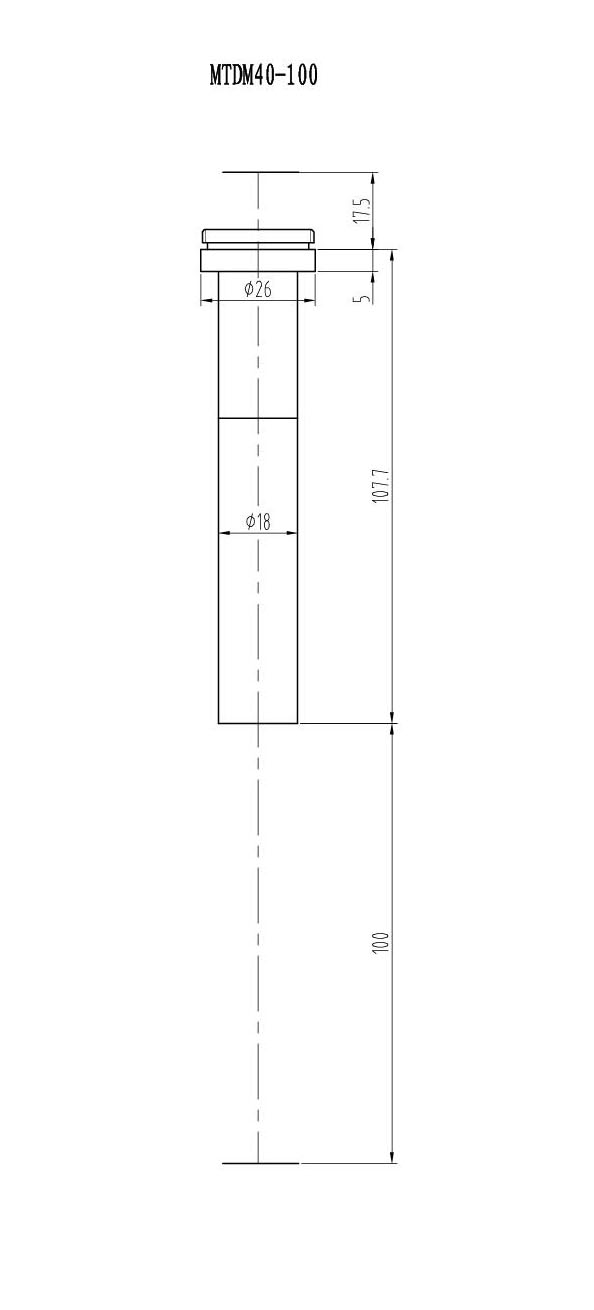

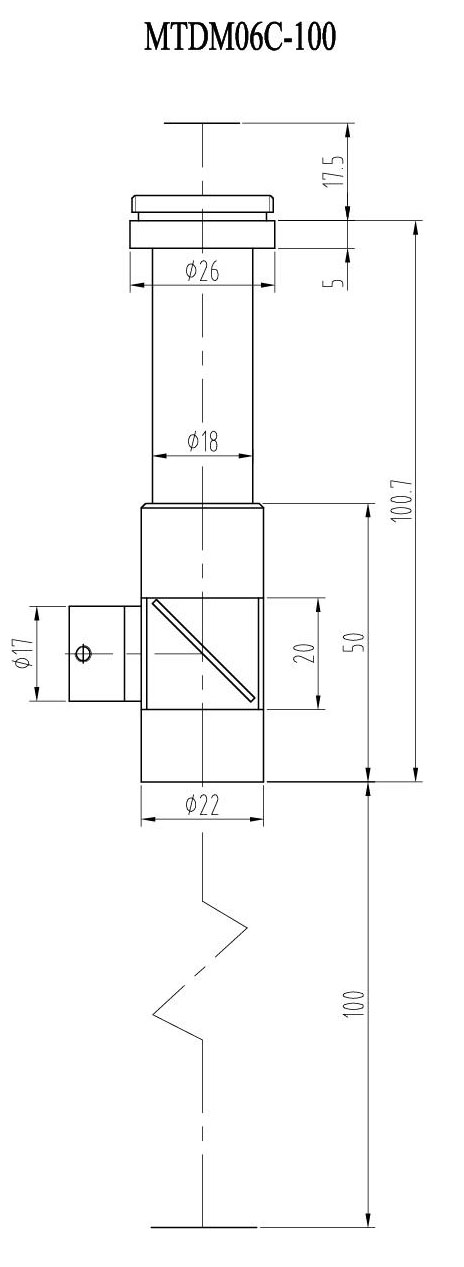

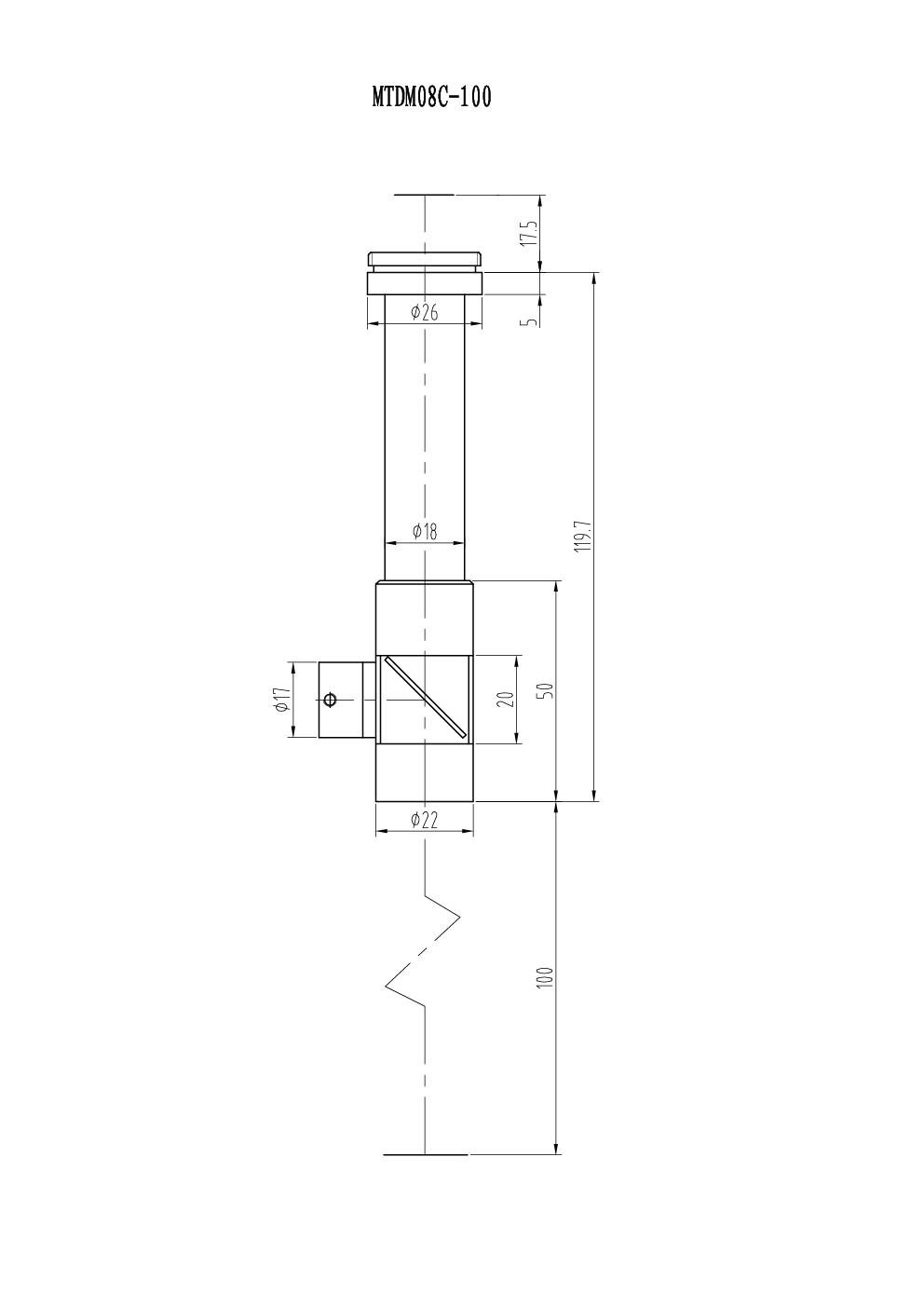

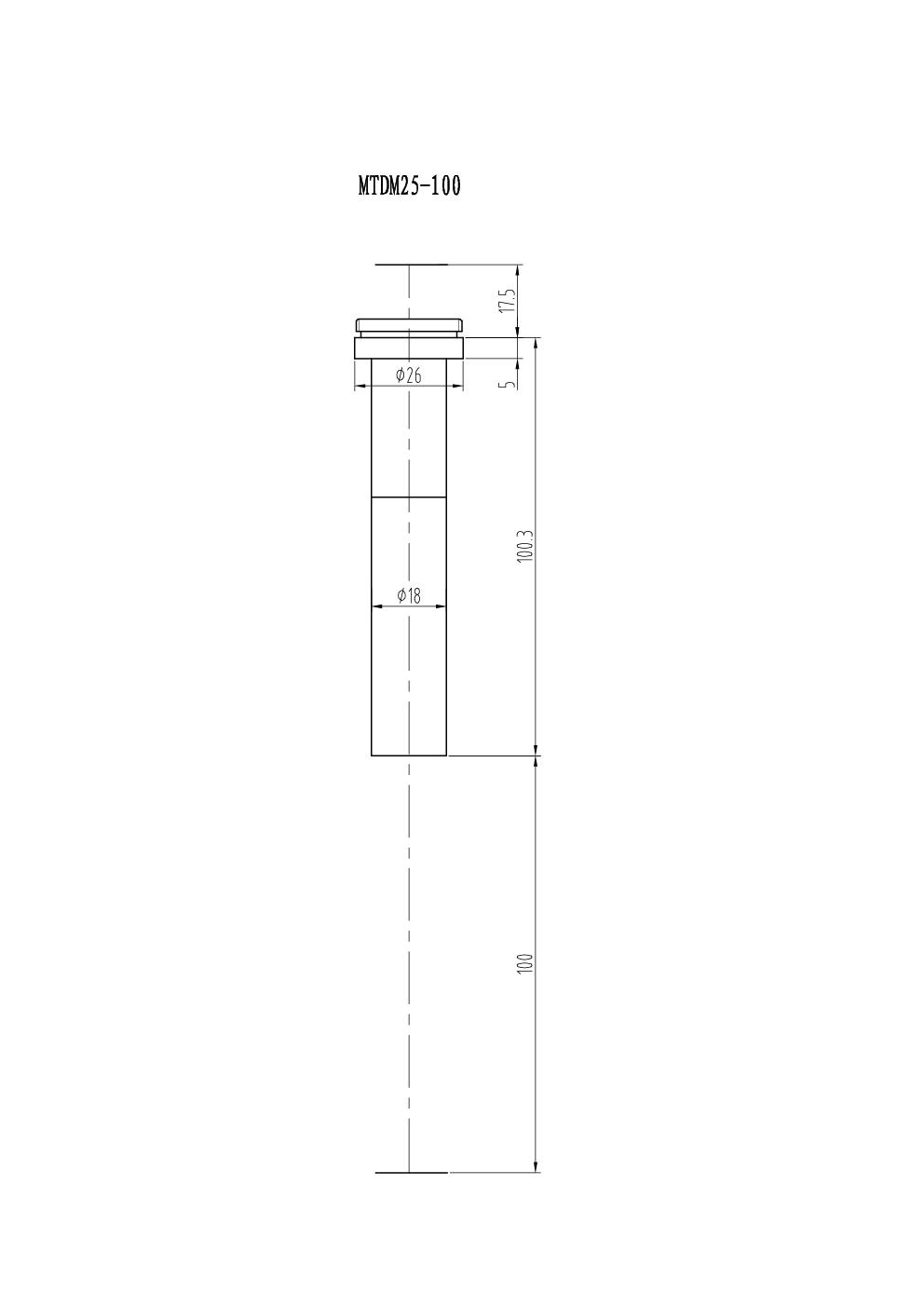

2. MTDM系列單筒視頻顯微物鏡型號規格匯總（工作距離為100mm）：
|
型號 |
物鏡倍數 |
工作距離 (mm) |
總放大倍數 |
視場(mm) |
NA |
景深 |
分辨率(μm) |
失真 |
|
|
1/3"、9" |
1/3"、17" |
||||||||
|
0.6X |
100 |
22.9X |
43.2X |
8X6 |
0.04 |
1.67 |
8.4 |
0.03% |
|
|
0.6X |
100 |
22.9X |
43.2X |
8X6 |
0.04 |
1.67 |
8.4 |
0.03% |
|
|
0.8X |
100 |
30.5X |
57.6X |
6X4.5 |
0.04 |
1.25 |
8.4 |
0.01% |
|
|
0.8X |
100 |
30.5X |
57.6X |
6X4.5 |
0.04 |
1.25 |
8.4 |
0.01% |
|
|
1.0X |
100 |
38.1X |
72.0X |
4.8X3.6 |
0.045 |
0.89 |
7.5 |
0.18% |
|
|
1.0X |
100 |
38.1X |
72.0X |
4.8X3.6 |
0.045 |
0.89 |
7.5 |
0.18% |
|
|
1.5X |
100 |
57.2X |
108.0X |
3.2X2.4 |
0.045 |
0.59 |
7.5 |
0.25% |
|
|
1.5X |
100 |
57.2X |
108.0X |
3.2X2.4 |
0.045 |
0.59 |
7.5 |
0.25% |
|
|
2.0X |
100 |
76.2X |
143.9X |
2.4X1.8 |
0.045 |
0.44 |
7.5 |
0.24% |
|
|
2.0X |
100 |
76.2X |
143.9X |
2.4X1.8 |
0.045 |
0.44 |
7.5 |
0.24% |
|
|
2.5X |
100 |
95.3X |
179.9X |
1.9X1.4 |
0.05 |
0.32 |
6.7 |
0.26% |
|
|
2.5X |
100 |
95.3X |
179.9X |
1.9X1.4 |
0.05 |
0.32 |
6.7 |
0.26% |
|
|
3.0X |
100 |
114.3X |
215.9X |
1.6X1.2 |
0.055 |
0.24 |
6.4 |
0.2% |
|
|
3.0X |
100 |
114.3X |
215.9X |
1.6X1.2 |
0.055 |
0.24 |
6.4 |
0.2% |
|
|
4.0X |
100 |
152.4X |
287.9X |
1.2X0.9 |
0.06 |
0.17 |
5.6 |
0.25% |
|
|
4.0X |
100 |
152.4X |
287.9X |
1.2X0.9 |
0.06 |
0.17 |
5.6 |
0.25% |
|

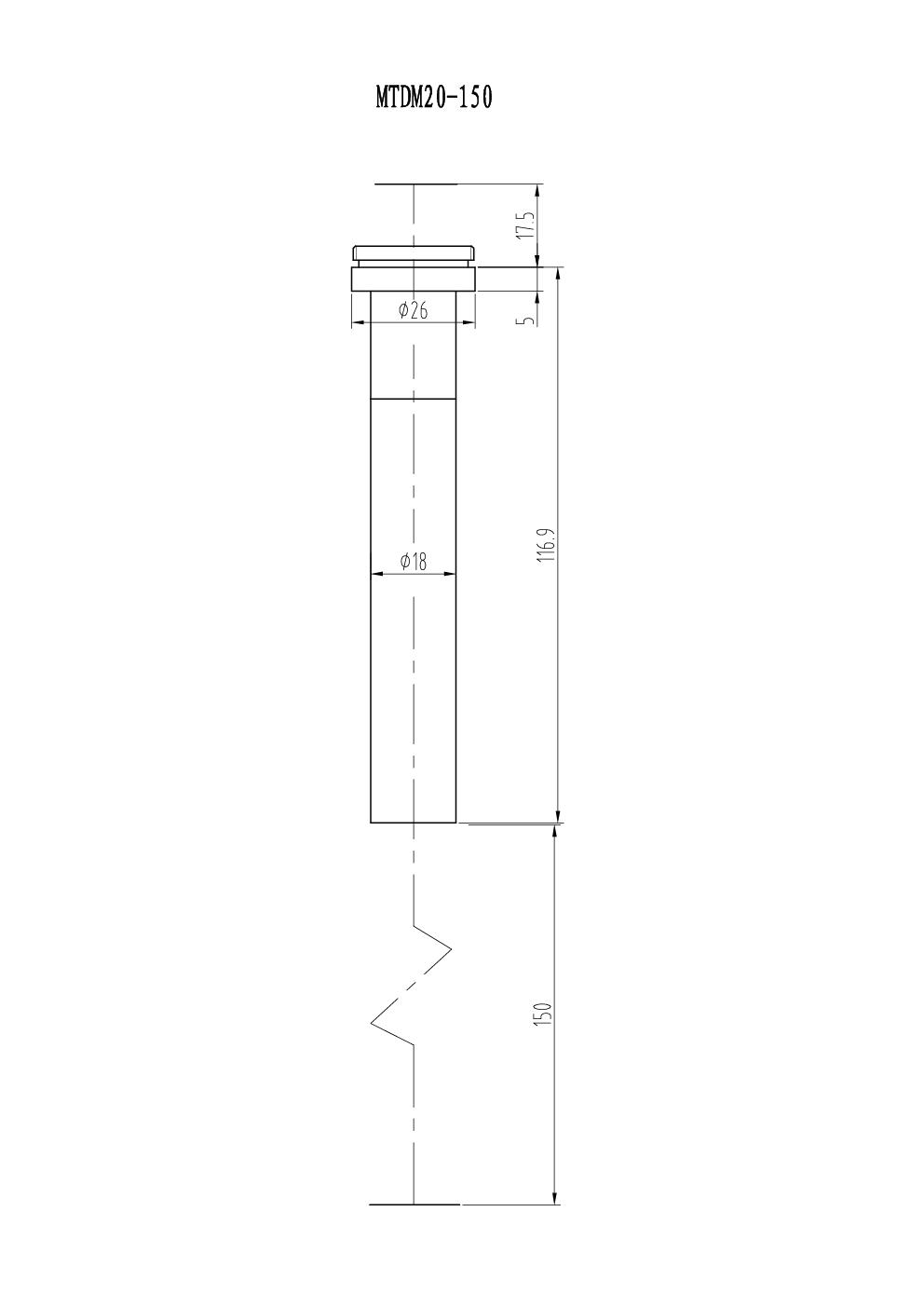

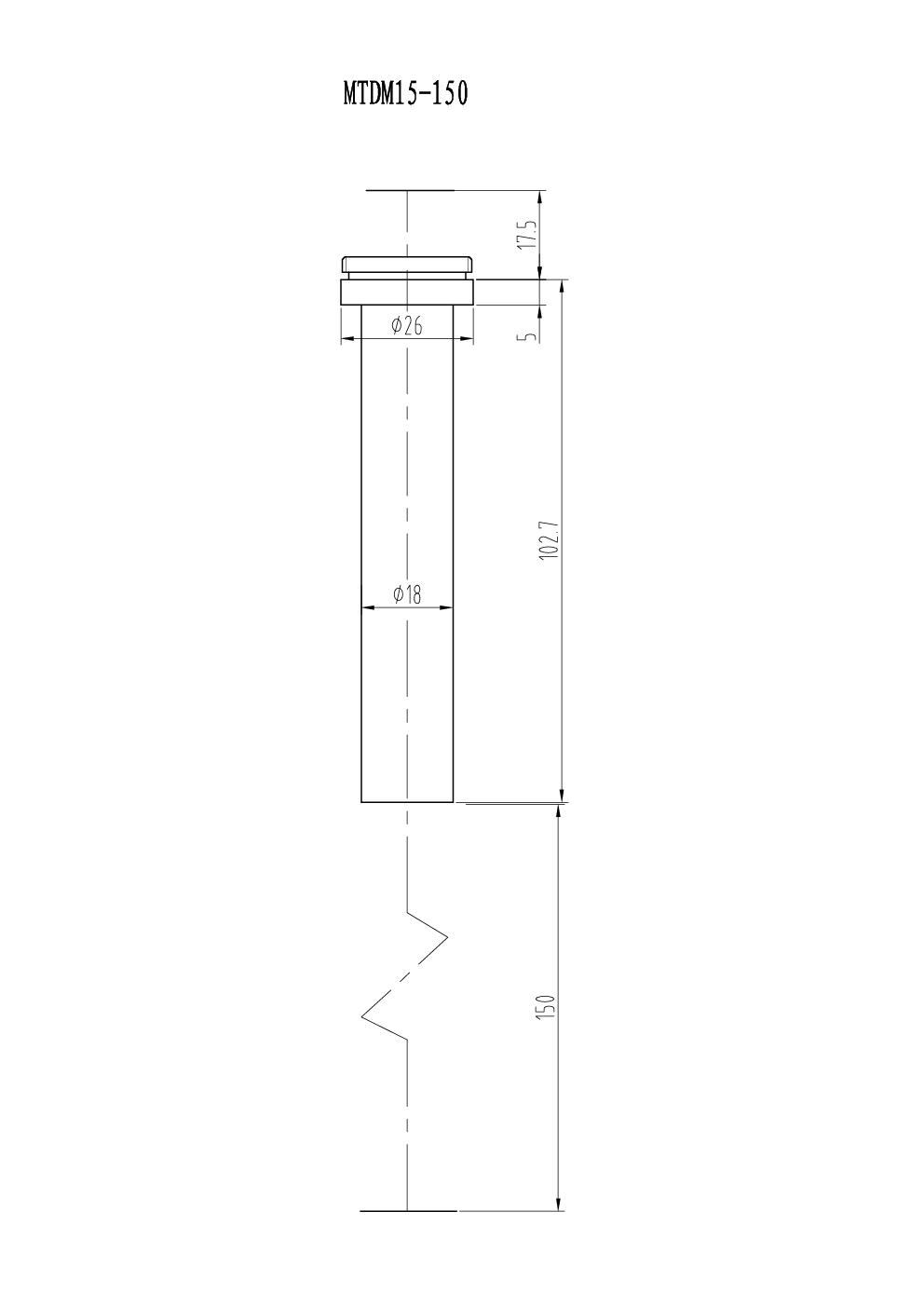

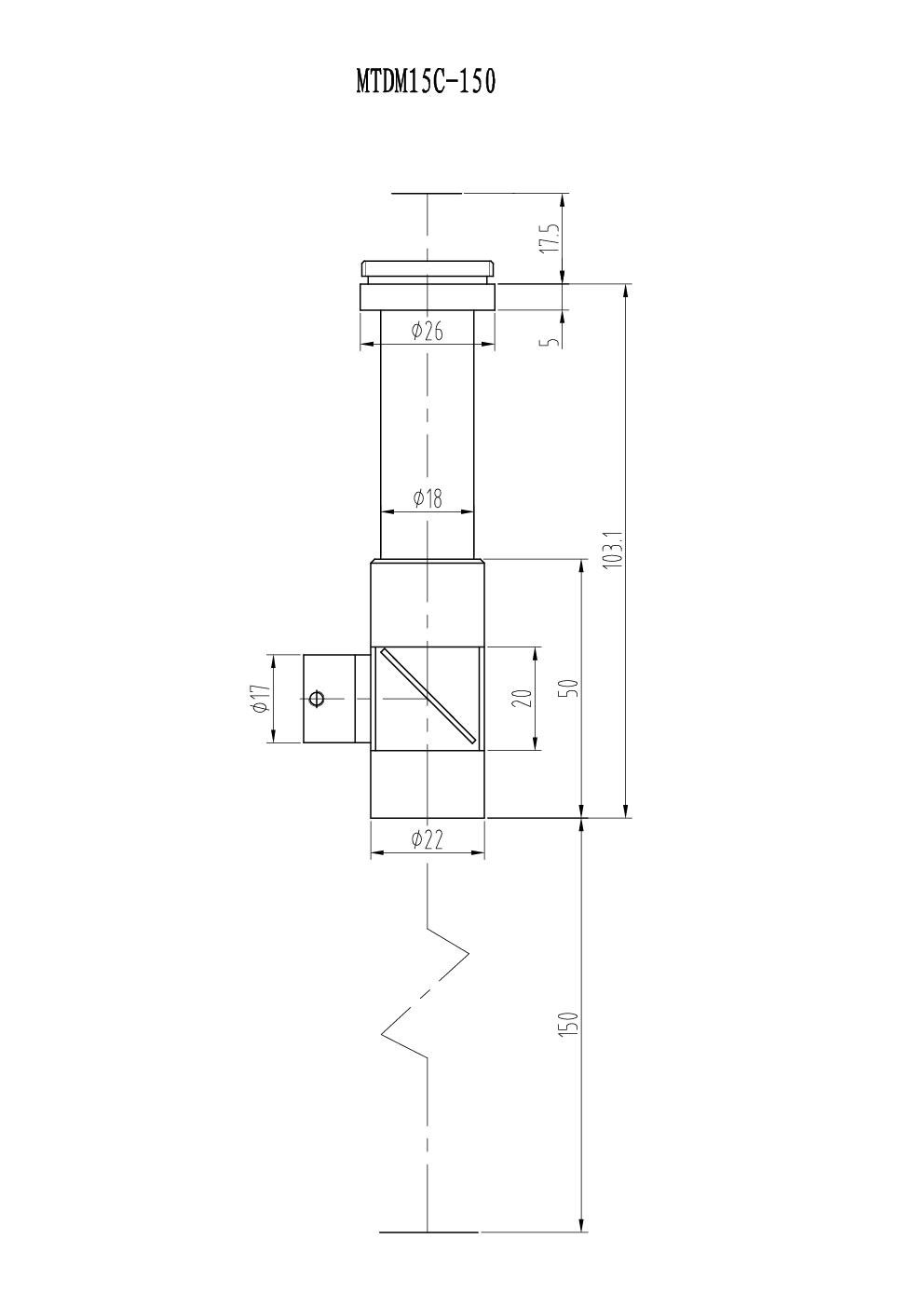

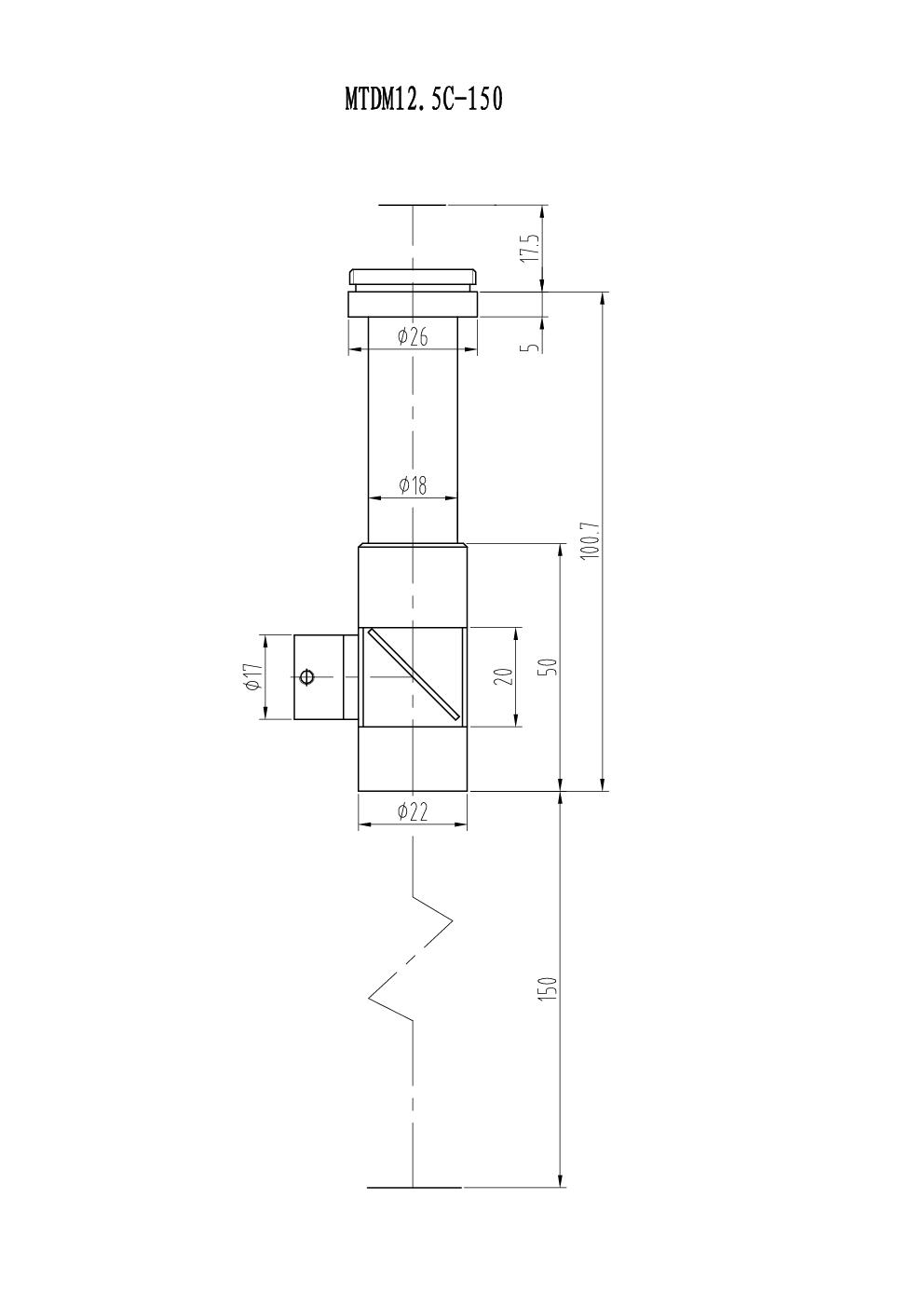

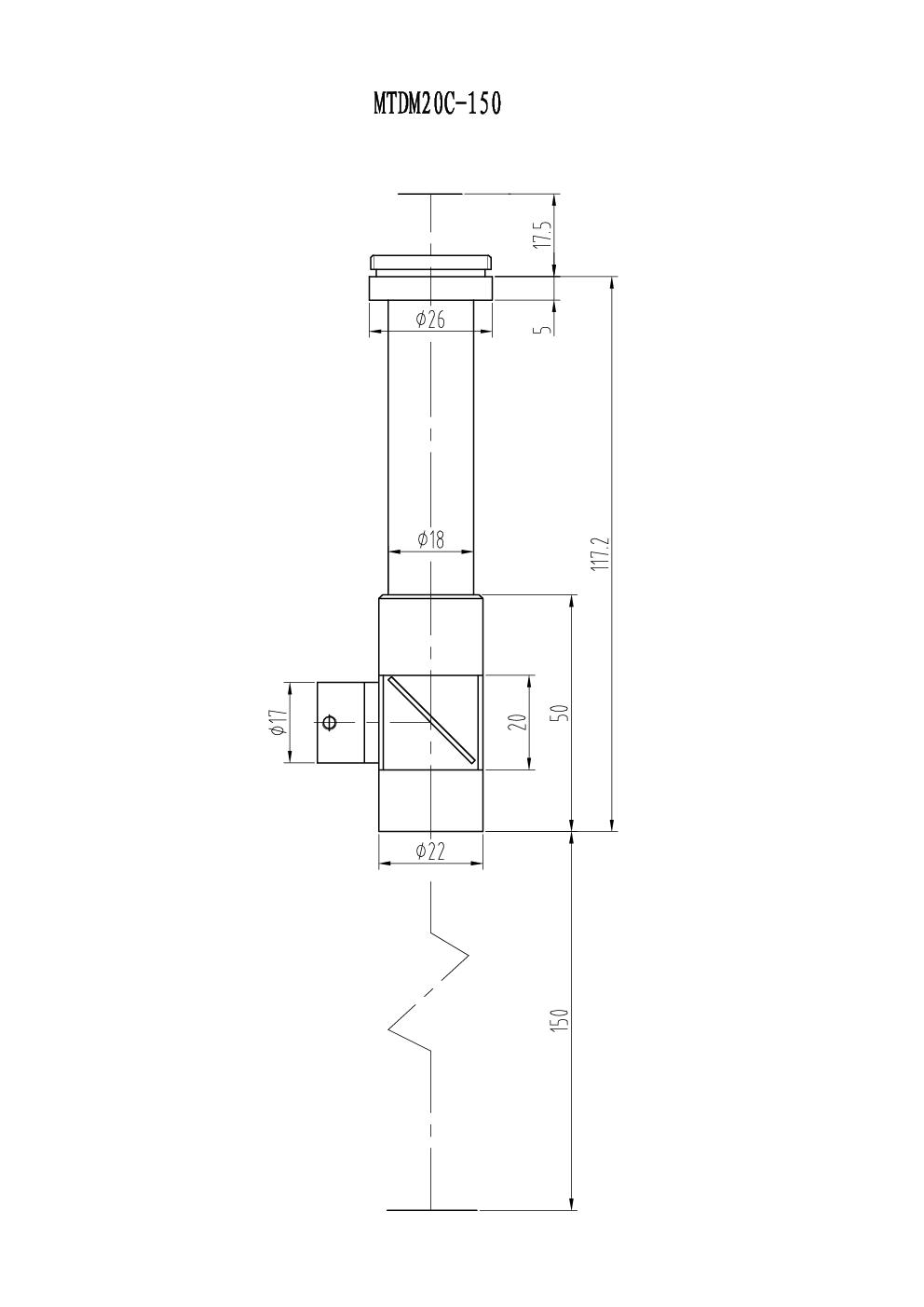

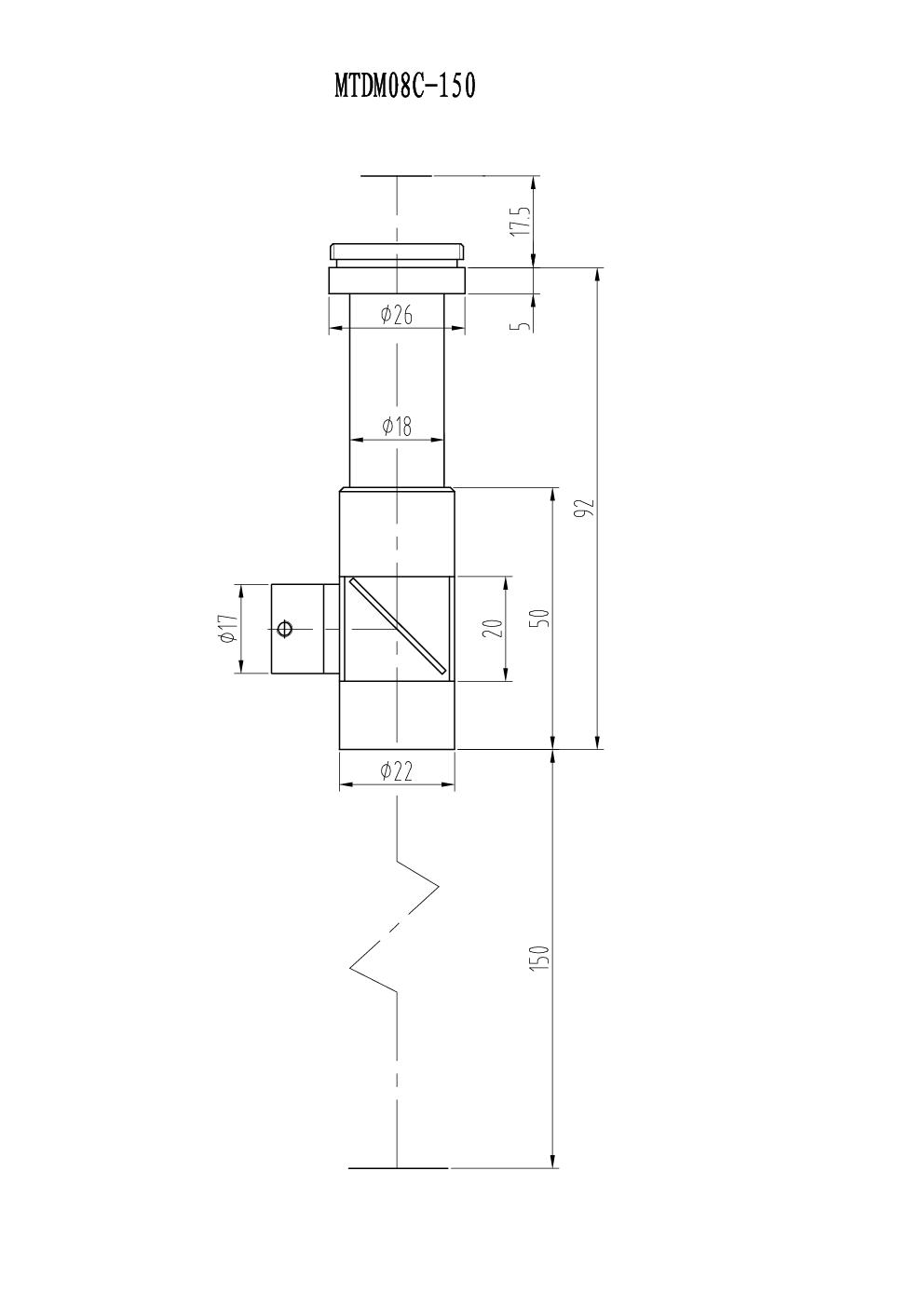

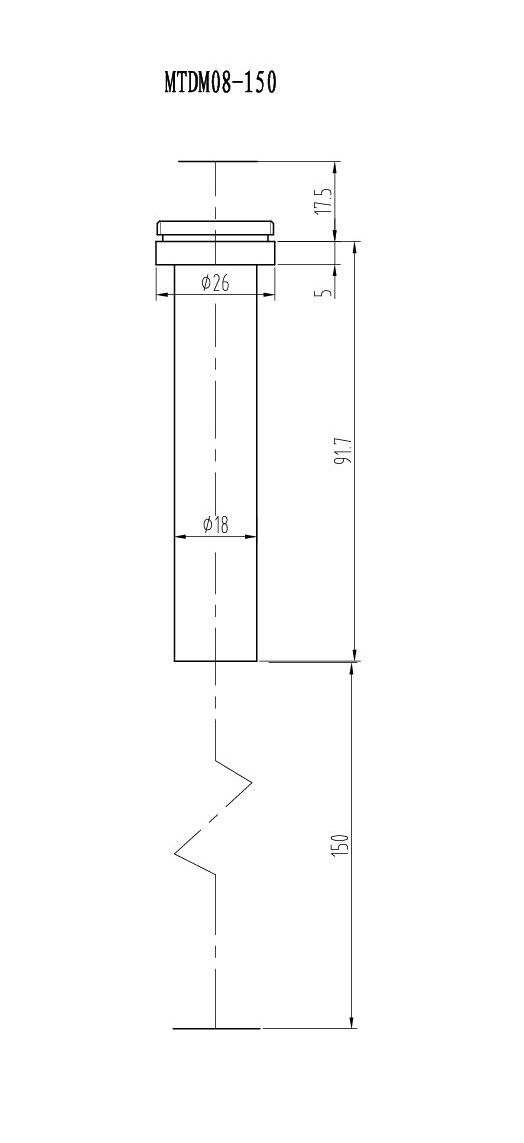

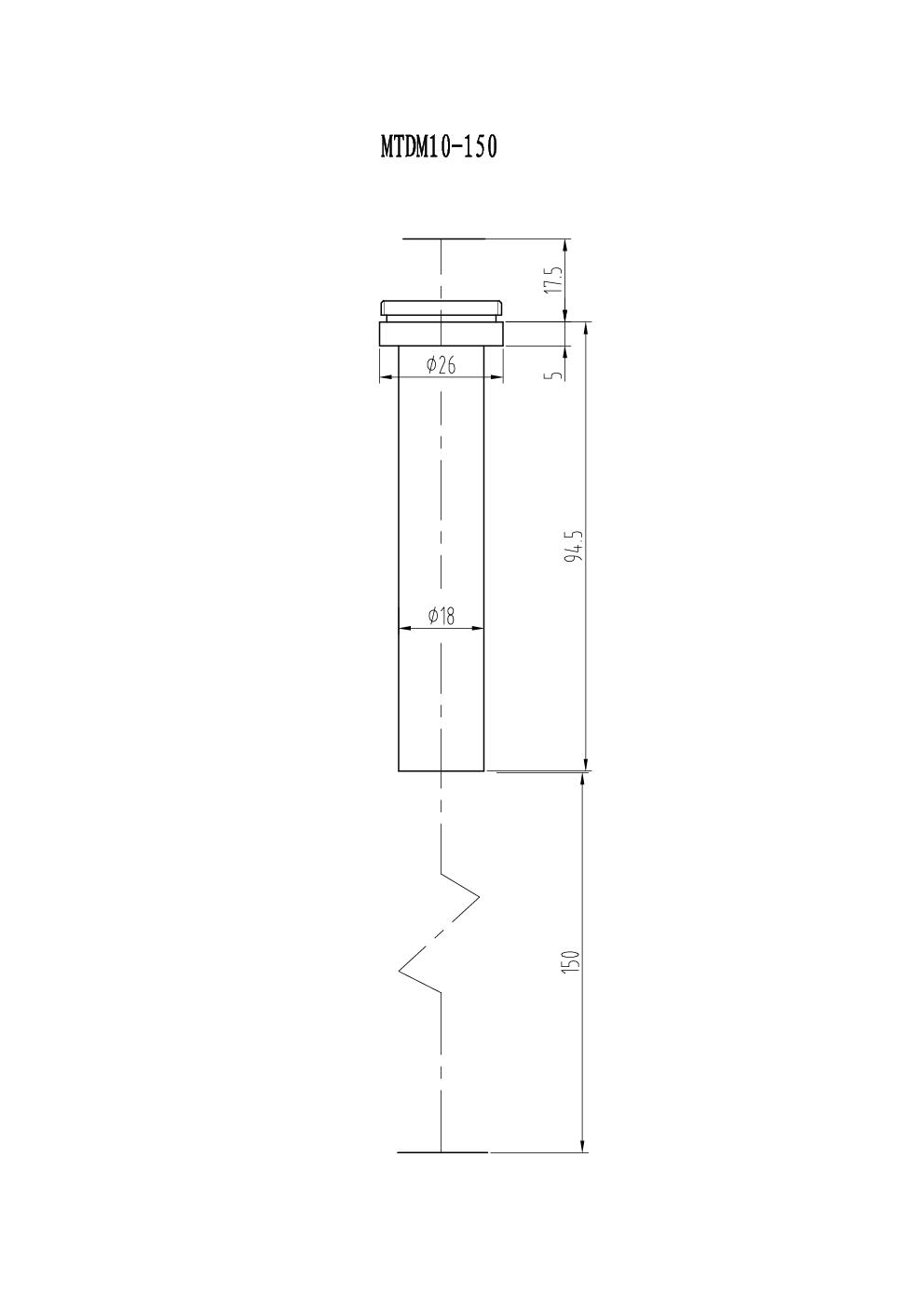

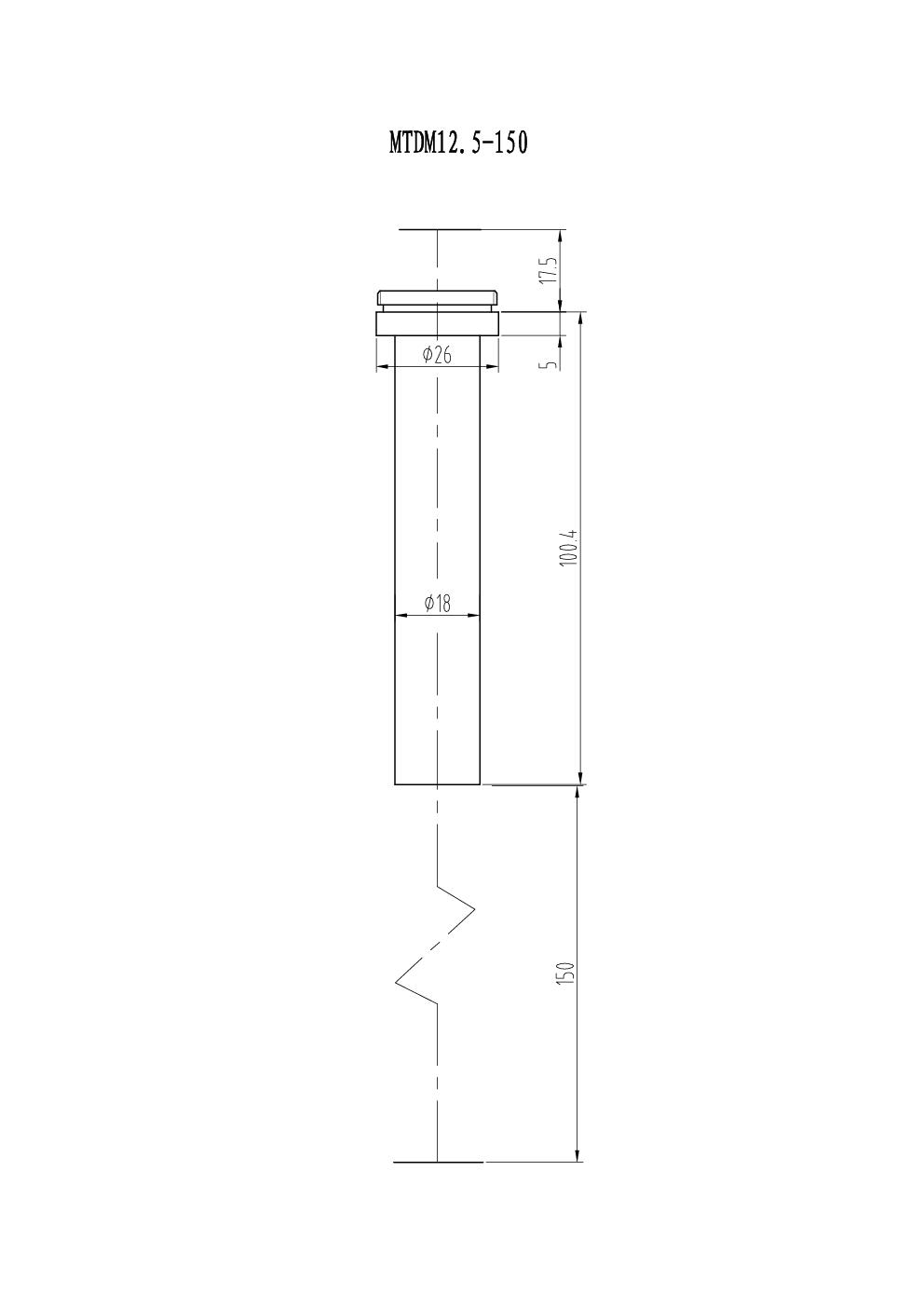

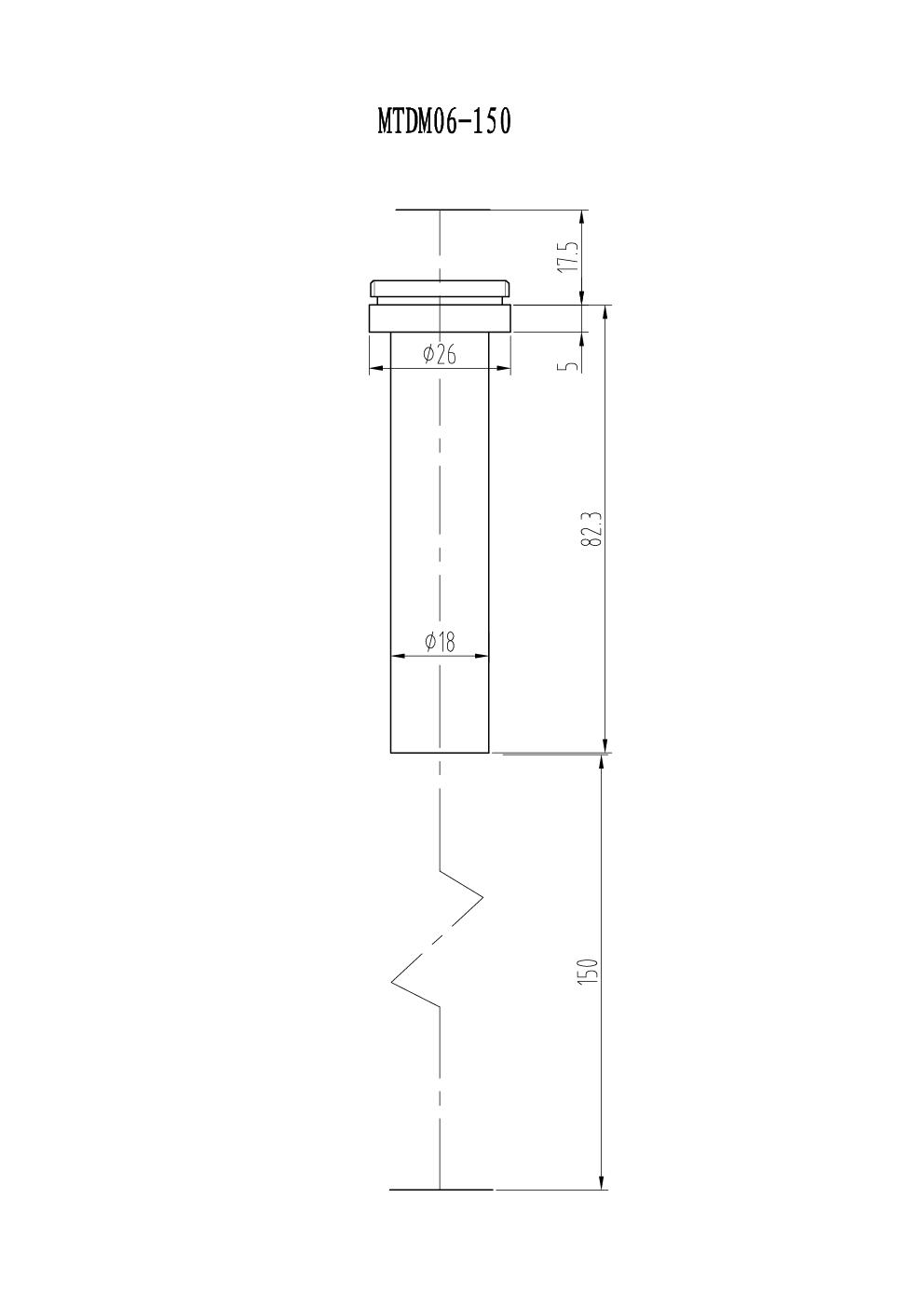

3. MTDM系列單筒視頻顯微物鏡型號規格匯總（工作距離為150mm）：
|
型號 |
物鏡倍數 |
工作距離 (mm) |
總放大倍數 |
視場(mm) |
NA |
景深 |
分辨率(μm) |
失真 |
|
|
1/3"、9" |
1/3"、17" |
||||||||
|
0.6X |
150 |
22.9X |
43.2X |
8X6 |
0.04 |
1.67 |
8.4 |
0.01% |
|
|
0.6X |
150 |
22.9X |
43.2X |
8X6 |
0.04 |
1.67 |
8.4 |
0.01% |
|
|
0.8X |
150 |
30.5X |
57.6X |
6X4.5 |
0.04 |
1.25 |
8.4 |
0.12% |
|
|
0.8X |
150 |
30.5X |
57.6X |
6X4.5 |
0.04 |
1.25 |
8.4 |
0.12% |
|
|
1.0X |
150 |
38.1X |
72.0X |
4.8X3.6 |
0.04 |
1 |
8.4 |
0.28% |
|
|
1.0X |
150 |
38.1X |
72.0X |
4.8X3.6 |
0.04 |
1 |
8.4 |
0.28% |
|
|
1.25X |
150 |
47.6X |
90.0X |
3.8X2.9 |
0.04 |
0.8 |
8.4 |
0.4% |
|
|
1.25X |
150 |
47.6X |
90.0X |
3.8X2.9 |
0.04 |
0.8 |
8.4 |
0.4% |
|
|
1.5X |
150 |
57.2X |
108.0X |
3.2X2.4 |
0.04 |
0.67 |
8.4 |
0.5% |
|
|
1.5X |
150 |
57.2X |
108.0X |
3.2X2.4 |
0.04 |
0.67 |
8.4 |
0.5% |
|
|
2.0X |
150 |
76.2X |
143.9X |
2.4X1.8 |
0.042 |
0.48 |
8 |
0.35% |
|
|
2.0X |
150 |
76.2X |
143.9X |
2.4X1.8 |
0.042 |
0.48 |
8 |
0.35% |
|
注： 1. 景深是假設使用1/2″CCD攝像機在水平320線以上的監視器的解像值。（成像面可容許的錯亂圓周：40μm）
2. 分辨率是指波長在550nm時理論分辨率。
3. 最大兼容CCD：1/2″。
4. 安裝尺寸：C安裝口，螺紋1英寸32扣。
5. 在總放大倍數欄中，1/3"是表示CCD攝像機的規格，9"、17"是表示監視器屏幕尺寸。 1/3"、9"表示在1/3"CCD攝像機、9"監視器下該MTDY物方遠心物鏡的總放大倍數。
