◆ MZS1865C(binocular) and MZS1865TC(trinocular)

◆ Unique optical design, high-quality LED coaxial illumination, high contrast, and large depth of field

◆Applied for images observation ,inspection and measurement on semiconductor, LCD, LED and etc., Which needs coaxial illumination

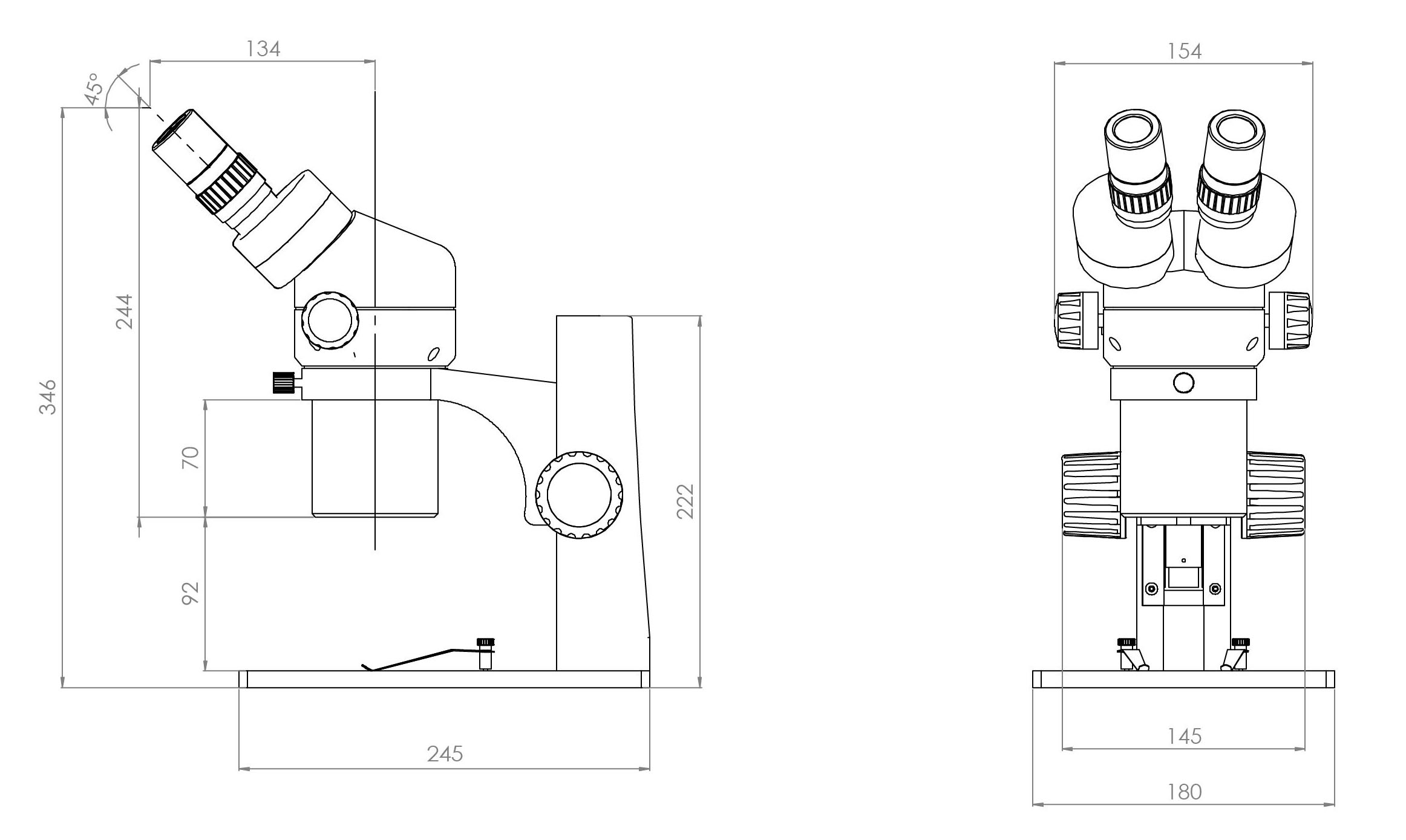

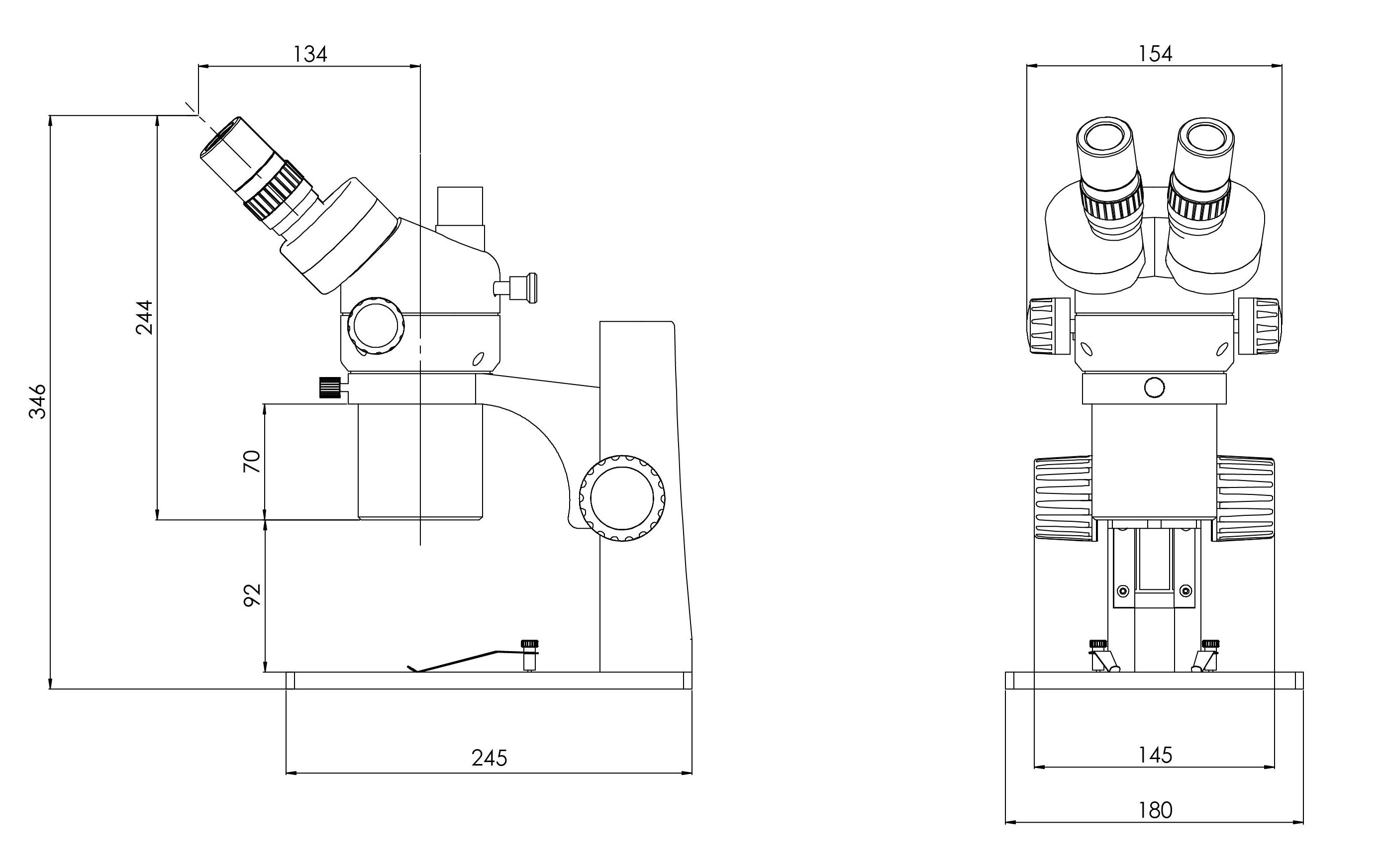

MZS1865C+SD12外形尺寸	MZS1865TC+SD12外形尺寸

Magnification	Total magnification (standard outfits): 18X~65X, Extend total magnification：195X
Eyepiece	SWH10X high eye point & extra wide-field eyepiece ,FOV Φ23mm
Eyetubes	Inclined 45°
WD	92mm
Focus range	Track stand:100mm
Interpupillary distance adjustment range (10X eyepiece)	52mm~76mm
Diopter adjustment range	±6 Diopter
The holder and the head matching dimension	Φ76mm
Illuminators	Optional illumination:5W fluorescent lamp at the bottom; halogen lamp(6V、10W) on the top.

	Stands	SD1~SD18
	Eyepieces	WFH10X, SWF15X, SWF20X, SWF30X
	Divisional eyepieces	WFH10X-CM0.1XY SWF15X-CM0.05XY SWF20X-CM0.05XY
	CCD adapters	C0.3-S、C0.5-S、C1.0-S
	Digital camera adapter	DT01
	Digital camera adapter	PT02
	1X CCD adapter with micrometer	CDM1.0 Note: It should be used with CCD adapter together.
	Mechanical stage	S7665, S10086 Note: Please explain in advance while the mechanical stage needs to be installed on the stand, the stand needs specially be increased the screw holes.
