◆ Unique optical system & precise machinery framework

◆ Sharp microimages & non-coruscant during zoom course

◆ Can observe different objects by equipped with different LED adaxial illumination and coaxial illumination.

◆ Used in electric equipments，semiconductor，LCD，LED and etc. for digital images observation，inspection and measurement.

Can be custom-made pre-set stops at integer magnification with detent in zoom course
Magnification positioned repeatedly and exactly with detents in zoom course, especially suitable for planar & three-dimensional inspection.

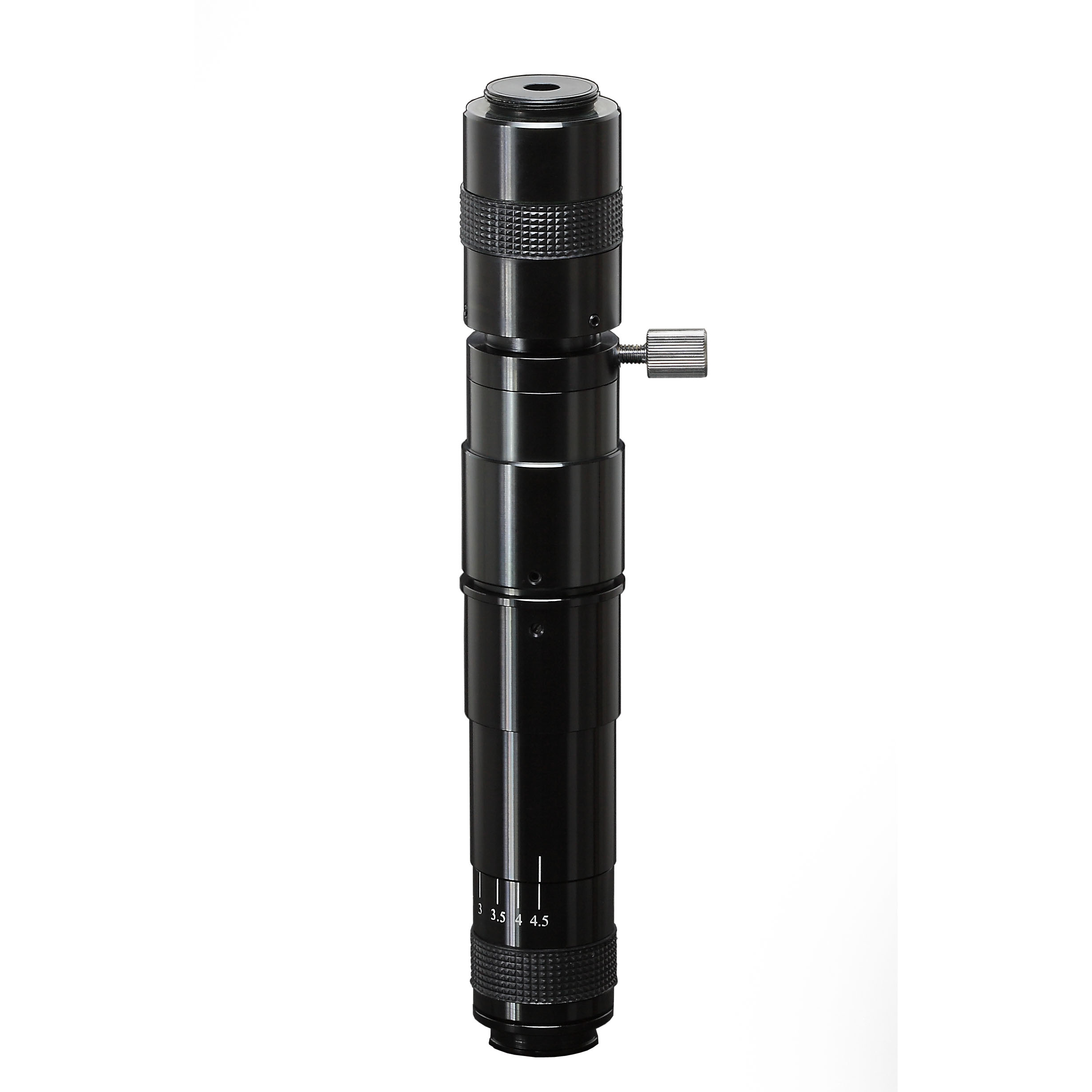

MZDM0745	MZDM0745

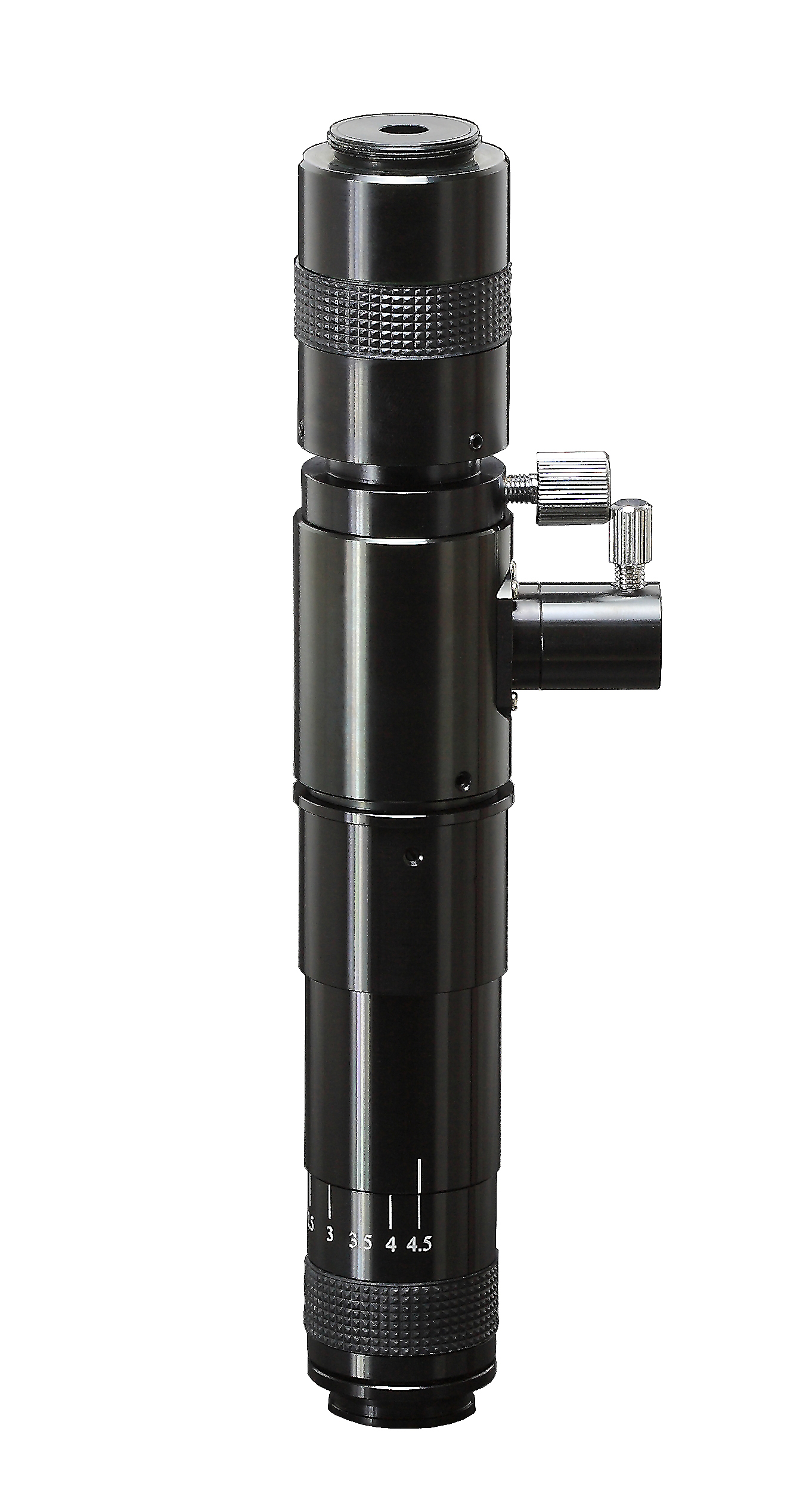

MZDM0745C	MZDM0745C

Zoom range	0.7X~4.5X
Zoom ratio	6.4:1
WD	90mm
Illumination	Adjustable high brightness , long life LED coaxial illumination; LED ring illumination

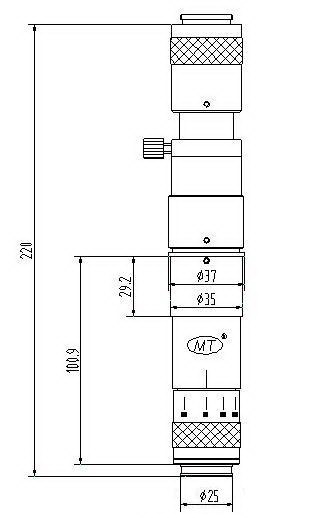

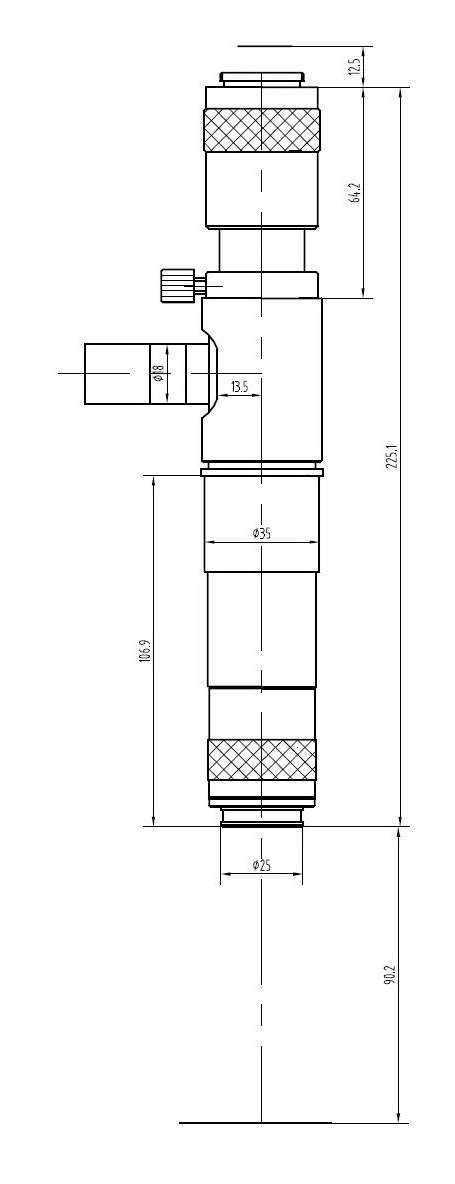

Main body and Holder matching dimension	Φ35mm(With extra ring:Φ45mm)
Mount	Standard CS-mount (distance between the bearing surface and the CCD plane is 12.5mm)

Mag.	NA	DOF	Resolution	TV Distortion	Fixed Dim.：Φ45mm Max compatible camera：1/2" CCD screw mount： 1 inch 32 button
0.7X	0.028	2.0mm	12.0μm	0.10%
2.0X	0.066	0.30mm	5.1μm	0.05%
4.5X	0.073	0.12mm	4.6μm	0.02%

Objective	Item	CCD adapter
		0.5X	1X
1X (Main body)	Optical Mag.	0.35X～2.25X	0.7X～4.5X
	FOV(mm)	10.3X13.7～1.6X2.13	5.14X6.86～0.8X1.07
	WD(mm)	90
0.5X	Optical Mag.	0.175X～1.125X	0.35X～2.25X
	FOV(mm)	20.57X27.4～3.2X4.27	10.29X13.7～1.6X2.13
	WD(mm)	175
2X	Optical Mag.	0.7X～4.5X	1.4X～9X
	FOV(mm)	5.14X6.86～0.8X1.07	2.57X3.43～0.4X0.53
	WD(mm)	34
Zoom body magnification range0.7X～4.5X

	Auxiliary illuminators	MLC100A, MLR25
	CCD adapters	C0.5X, C1.0X
	Objectives	0.5X, 1.0X, 2.0X
	Stands	SD1-D ~ SD18-D
